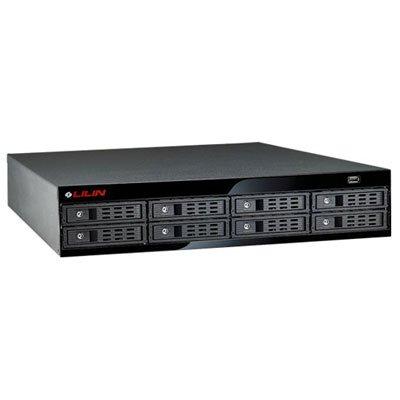

32 Channel H.264 / H.265 network camera input Up to 4K H.264 /H.265 network camera support Up to 1080P 120 FPS network camera support Up to 16TB HDD supported HDMI 2.0 4K 60P / VGA 1080P 60fps output P2P QR code UID connection for APP and Navigator External e-SATA storage supported Mobile phone iOS, Android solutions provided Network input throughput up to 300Mbps RAID 160Mbps Software RAID 1/5/6 supported 19" 2U Rackmount Chrome, Edge, Firefox, IE, Opera, Safari supported GPS communications AES-256 encryption

32 Channel H.264 / H.265 network camera input Up to 4K H.264 /H.265 network camera support 16 Port PoE, automatic network camera plug and play Internal HDD up to 16TB supported P2P QR code UID connection for APP and Navigator Network input throughput up to 300Mbps RAID 160 Mbps Software RAID 1/5/6 supported NDAA Compliant

64 Channel H.264 / H.265 network camera input Up to 4K H.264 /H.265 network camera support Up to 1080P 120 FPS network camera support Up to 16TB HDD supported HDMI 2.0 4K 60P / VGA 1080P 60fps output P2P QR code UID connection for APP and Navigator External e-SATA storage supported Mobile phone iOS, Android solutions provided Network input throughput up to 352Mbps RAID 160Mbps Software RAID 1/5/6 supported 19" 2U Rackmount Chrome, Edge, Firefox, IE, Opera, Safari supported GPS communications

32 Channel H.264 / H.265 network camera input Up to 4K H.264 /H.265 network camera support 16 Port PoE, automatic network camera plug and play Internal HDD up to 16TB supported P2P QR code UID connection for APP and Navigator Network input throughput up to 300Mbps RAID 160 Mbps NDAA Compliant

Up to 72 channels 1080P/3MP/4MP/5MP/8MP/12MP Network streaming, recording Paired with AI IPCAM 72 channels Built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 16 × Hot-swap 3.5 Inch SATA HDD (recording) Support failover up to 36 channel per server Dual streaming decoding mode supported 2 monitors support up to 36 channels in total (480P 15fps) Support multi-channels synchronized playback (remote or local) Support Fisheye camera dewarping Built-in dual port 2.5GbE, RJ-45 × 2 Built-in 800W 1+1 redundant PSU 3U dimension for rackmount cabinet

Up to 108 channels 1080P/3MP/4MP/5MP/8MP/12MP Network streaming, recording Paired with AI IPCAM 72 channels Built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 16 × Hot-swap 3.5 Inch SATA HDD (recording) Support failover up to 36 channel per server Dual streaming decoding mode supported 2 monitors support up to 36 channels in total (480P 15fps) Support multi-channels synchronized playback (remote or local) Support Fisheye camera dewarping Built-in dual port 2.5GbE, RJ-45 × 2 Built-in 800W 1+1 redundant PSU 3U dimension for rackmount cabinet

Up to 108 channels 1080P/3MP/4MP/5MP/8MP/12MP Network streaming, recording Paired with AI IPCAM 72 channels Built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 24 × Hot-swap 3.5 Inch SATA HDD (recording) Support failover up to 36 channel per server Dual streaming decoding mode supported 2 monitors support up to 36 channels in total (480P 15fps) Support multi-channels synchronized playback (remote or local) Support Fisheye camera dewarping Built-in dual port 2.5GbE, RJ-45 × 2 Built-in 1200W 1+1 redundant PSU 4U dimension for rackmount cabinet

1080P/3MP/4MP/5MP/8MP/12MP Network streaming, recording Paired with AI IPCAM 36 channels Built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 24 × Hot-swap 3.5 Inch SATA HDD (recording) Support failover up to 36 channel per server Dual streaming decoding mode supported 2 monitors support up to 108 channels in total (480P 15fps) Support multi-channels synchronized playback (remote or local) Support Fisheye camera dewarping Built-in one port 1GbE RJ-45 × 1 Built-in one port 10Gbe RJ-45 x 1 Built-in 1200W 1+1 redundant PSU 4U dimension for rackmount cabinet

1080P/3MP/4MP/5MP/8MP/12MP Network streaming, recording Built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 24 × Hot-swap 3.5 Inch SATA HDD (recording) Support failover up to 36 channel per server Dual streaming decoding mode supported 2 monitors support up to 36 channels in total (480P 15fps) Support multi-channels synchronized playback (remote or local) Support Fisheye camera dewarping Built-in dual port 2.5GbE, RJ-45 × 1, PCI × 1 Built-in 1200W 1+1 redundant PSU 4U dimension for rackmount cabinet

1080P/3MP/4MP/5MP/8MP/12MP Network streaming, recording Built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 16 × Hot-swap 3.5 Inch SATA HDD (recording) Support failover up to 36 channel per server Dual streaming decoding mode supported 2 monitors support up to 36 channels in total (480P 15fps) Support multi-channels synchronized playback (remote or local) Support Fisheye camera dewarping Built-in dual port 2.5GbE, RJ-45 × 1, PCI × 1 Built-in 800W 1+1 redundant PSU 3U dimension for rackmount cabinet

Up to 72 channels 1080P/3MP/4MP/5MP/8MP/12MP Network streaming, recording Paired with AI IPCAM 72 channels Built-in 1 × 500GB 2.5 Inch SATA SSD (OS) Support up to 24 × Hot-swap 3.5 Inch SATA HDD (recording) Support failover up to 36 channel per server Dual streaming decoding mode supported 2 monitors support up to 36 channels in total (480P 15fps) Support multi-channels synchronized playback (remote or local) Support Fisheye camera dewarping Built-in dual port 2.5GbE, RJ-45 × 2 Built-in 1200W 1+1 redundant PSU 4U dimension for rackmount cabinet
