Bosch Indoor Security

Dual internal antennas provide spatial and polar diversity for highly reliable RF signal reception Cover and wall tamper detection Multiple device and control panel supportive options as well as RF diagnostics ensure efficient and effective installation Supports RADION repeater to increase wireless system coverage and reliability External status LED

Dual internal antennas provide spatial and polar RF signal reception for high reliability Cover and wall tamper detection Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation Supports supervision of wireless points and repeaters External status LED

Converts 24 VDC to 12 VDC Maximum current 500 mA Mounts in NNK100 enclosure or two converters on MAP Accessory Mounting Plate Limits and indicates over-current conditions

Works with compatible control panels to protect the battery from deep discharge in the event of an extended AC power outage Prevents deep discharge by disconnecting the battery from the control panel when battery voltage drops down to 9.5 VDC Required for use with compatible control panels for CAN/ULC S559 Quick and easy installation

Provides two independent power ports with fixed 28 VDC regulated output Provides 150 W for battery charging and system power Provides controlled 500 mA, 24 VDC nominal auxiliary output Provides color‑coded terminal for easy installation Provides two dry relay contacts for AC and DC trouble signaling

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator The wireless keyfob with synchronized encryption features increased immunity to replay attacks, providing even more reliable system security

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator Programmable option buttons The wireless keyfob with synchronized encryption features increased immunity to replay attacks, providing even more reliable system security

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator Programmable option buttons

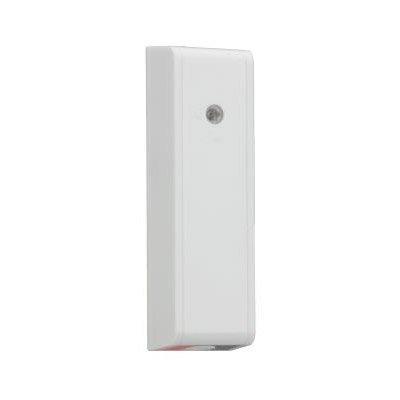

Intelligent 3-axis vibration detection Self-learning mode Dual-color LED indicator Adjustable sensitivity Slim design for easy installation

13.56 MHz proximity reader, compatible with Bosch access modular controllers (AMC2), as well as access control software (BIS/ACE, AMS and APE) OSDP V2 Secure Channel, AES 128 bit encryption and Bosch coded MIFARE DESFire EV1 credential support for high level end-to-end security Support of multiple card technologies (standard iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, and MIFARE DESFire EV1) IP55 rating allows both indoor and outdoor installation

Lead battery Shock-resistant plastic enclosure Dry-cell battery Can be used irrespective of its position Low self-discharge Can be used for intrusion alarm systems according to DIN EN 50131-1

Lead battery Shock-resistant plastic enclosure Dry-cell battery Can be used irrespective of its position Low self-discharge Can be used for intrusion alarm systems according to DIN EN 50131-1

Lead battery Shock-resistant plastic enclosure Dry-cell battery Can be used irrespective of its position Low self-discharge Can be used for intrusion alarm systems according to DIN EN 50131-1

Lead battery Shock-resistant plastic enclosure Dry-cell battery Can be used irrespective of its position Low self-discharge Can be used for intrusion alarm systems according to DIN EN 50131-1

Can be added to a MAP Panel Enclosure Kit to increase the back-up time Suitable for a power supply and two sets of 2x 12 V / 38-45 Ah batteries Includes a power enclosure, tamper switch, enclosure lockset, AC terminal block, and an accessory pack containing connection cables

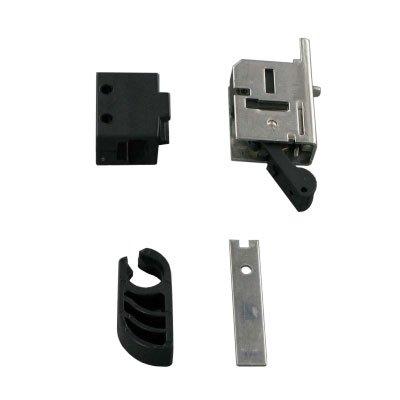

For monitoring interior door closure Bolt contact in conventional technology For connecting to a conventional intrusion control panel VdS class C Conventional perimeter protection

Suitable for a main panel, a DE module, a power supply, 2x 40 Ah batteries and 4x LSN gateways Includes a hinged mounting plate, panel enclosure, tamper switch, enclosure lockset, and AC terminal block

Suitable for a power supply, 2x 18 Ah batteries and x LSN gateways Expands the MAP system Includes a expansion enclosure, tamper switch, enclosure lockset, and AC terminal block

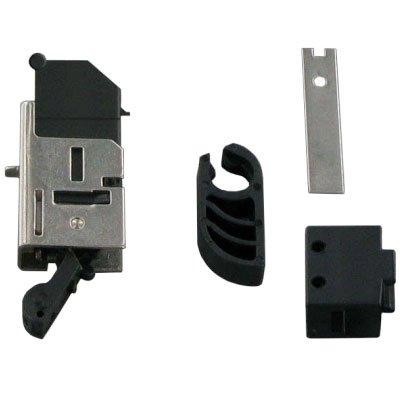

Bolt contact in LSN technology For monitoring the closure of doors For connecting to a LSN intrusion control panel VdS class C LSN perimeter protection

13.56 MHz proximity reader compatible with access controllers with Wiegand interfaces Fully compatible with the Bosch Access Management portfolio, including the Management Software Systems (BIS/ACE, AMS and APE), the Access Modular Controller (AMC2), and the MIFARE and iCLASS credential portfolio Support of multiple card technologies (iCLASS SE, iCLASS Seos, MIFARE DESFire EV1) Quick reading response for high performance level The use of NFC on mobile phones to set up the communication with the reader enables mobile phones to be used as access credentials IP55 rating allows both indoor and outdoor installation

13.56 MHz proximity reader, compatible with Bosch access modular controllers (AMC2), as well as access control software (BIS/ACE, AMS and APE) OSDP V2 Secure Channel, AES 128 bit encryption and Bosch coded MIFARE DESFire EV1 credential support for high level end-to-end security Support of multiple card technologies (standard iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, and MIFARE DESFire EV1) Equipped with keypad The keypad functionality can also be used for a variety of access control features including the option to set a door to long-term open IP55 rating allows both indoor and outdoor installation

13.56 MHz proximity reader, compatible with Bosch access modular controllers (AMC2), as well as access control software (BIS/ACE, AMS and APE) OSDP V2 Secure Channel, AES 128 bit encryption and Bosch coded MIFARE DESFire EV1 credential support for high level end-to-end security Support of multiple card technologies (standard iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, and MIFARE DESFire EV1) IP55 rating allows both indoor and outdoor installation

13.56 MHz proximity reader compatible with access controllers with Wiegand interfaces Fully compatible with the Bosch Access Management portfolio, including the Management Software Systems (BIS/ACE, AMS and APE), the Access Modular Controller (AMC2), and the MIFARE and iCLASS credential portfolio Support of multiple card technologies (iCLASS SE, iCLASS Seos, MIFARE DESFire EV1) Equipped with keypad The keypad functionality can also be used for a variety of access control features including the option to set a door to long-term open Quick reading response for high performance level The use of NFC on mobile phones to set up the communication with the reader enables mobile phones to be used as access credentials IP55 rating allows both indoor and outdoor installation

Compact reader with beeper and multi-colored LED display Plastic-coated for indoor and outdoor mounting Current consumption 20 mA/medium, 75 mA peak 45 cm connection cable (10-wired) Non-contact access control reader for connecting to an access controller with Wiegand interface

Reader with beeper and multi-colored LED display Wiegand output for 125 kHz card technology (EM) Indoor and outdoor mounting

13.56 MHz proximity reader, compatible with Bosch access modular controllers (AMC2), as well as access control software (BIS/ACE, AMS and APE) OSDP V2 Secure Channel, AES 128 bit encryption and Bosch coded MIFARE DESFire EV1 credential support for high level end-to-end security Support of multiple card technologies (standard iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, and MIFARE DESFire EV1) IP55 rating allows both indoor and outdoor installation

RS485/OSDP and 26 Bit Wiegand interface Supports the data record of Bosch coded MIFARE classic and DESFire EV1 cards and keyfobs and CSN of ISO14443A credentials Three LED indicators and a beeper give clear feedback to the user during operation IP65 rated for indoor and outdoor use Wall or mullion mount Tamper switch
