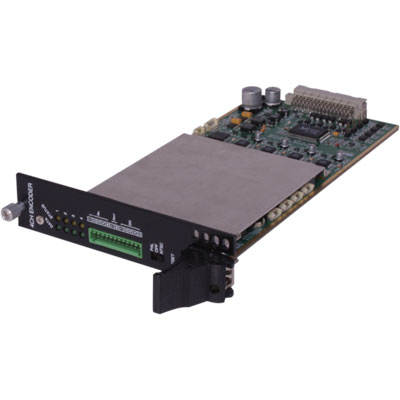

RIVA RE4100-OV-R40 4 Channel Network Video Encoder

Technical Specification

Features:
  • Make: RIVA
  • Model code: RE4100-OV-R40
  • Video Inputs: 4
  • Audio Input: Yes
  • Compression Type: H.264/M-JPEG
Read more
Additional info:

RIVA RE4100-OV-R40 is a 4 channel network video encoder blade card for installation into RIVA´s rack solution RE40K. It also features H.264 encoder with dual stream that offers a maximum resolution of 25/30 fps@D1 per video channel.

Read more
Make RIVA
Manufacturer ViDiCore GmbH
Model code RE4100-OV-R40
Video Inputs 4
Audio Input Yes
Compression Type H.264/M-JPEG
Network Protocols QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS, DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3, TLSv1
Interface 10/100 Base-T
Image per second (IPS) 30 fps
Physical Specifications Dimensions mm: 128 x 268
Weight g: 240
Electrical Specifications Power Consumption: 9 W
Voltage: 12 V DC
Environmental Specifications Operating Temperature oC: 0 ~ 50 C (32 ~ 122 F)
Operating Humidity %: 85
Additional info RIVA RE4100-OV-R40 is a 4 channel network video encoder blade card for installation into RIVA´s rack solution RE40K. It also features H.264 encoder with dual stream that offers a maximum resolution of 25/30 fps@D1 per video channel.
