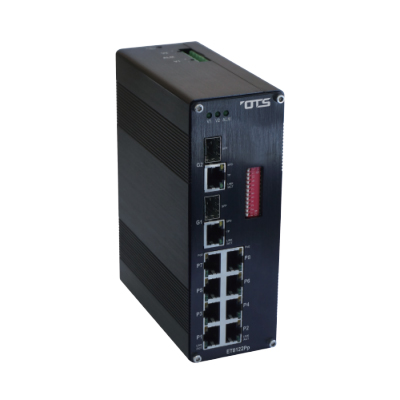

OT Systems ET8122Pp-S-DR Industrial Unmanaged Ethernet Switch
Technical Specification
Features:
- Make: OT Systems
- Model code: ET8122Pp-S-DR
- POE: Yes
- Video inputs / ports: 10
- TX/RX: TX
Additional info:
OT Systems ET8122Pp-S-DR is an industrial unmanaged Ethernet switch offering 8-port 10/100Base-TX (PoE+) plus 2-port 10/100/1000Base-T/SFP combo. It supports IEEE802.3at PoE+ (30W per port) and external SFP. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, and Auto MDI/MDIX; while combo RJ45 port supports 10/100/1000MbpsFull/Half-duplex, Auto-negotiation, and Auto MDI/MDIX.
Read moreMake | OT Systems |
---|---|
Manufacturer | OT Systems |
Category | Video Surveillance>Switchers & Switches |
Model code | ET8122Pp-S-DR |
POE | Yes |
Video inputs / ports | 10 |
TX/RX | TX |
Physical Specifications |
Dimensions mm: 59 x 121 x 165 Weight g: 1,000 |
Electrical Specifications |
Voltage: 48 ~ 57 V DC, PoE+ Power Consumption: 8 W |
Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 5 ~ 95 |
Additional info | OT Systems ET8122Pp-S-DR is an industrial unmanaged Ethernet switch offering 8-port 10/100Base-TX (PoE+) plus 2-port 10/100/1000Base-T/SFP combo. It supports IEEE802.3at PoE+ (30W per port) and external SFP. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, and Auto MDI/MDIX; while combo RJ45 port supports 10/100/1000MbpsFull/Half-duplex, Auto-negotiation, and Auto MDI/MDIX. |
