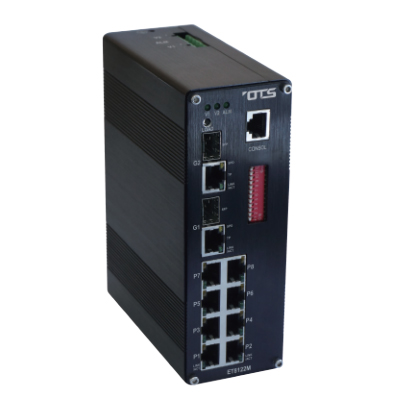

OT Systems ET8122M-S-DR Industrial Web-Smart Ethernet Switch
Technical Specification
Features:
- Make: OT Systems
- Model code: ET8122M-S-DR
- POE: Yes
- Video inputs / ports: 10
- TX/RX: TX
Additional info:
OT Systems ET8122M-S-DR is an industrial web-smart Ethernet switch offering 8 port 10/100Base-TX plus 2 port 10/100/1000Base-TX/SFP Combo. The RJ45 port supports 10/100Mbps-Full/Half-deplex, Auto-negotiation, Auto MDI/MDIX while the Combo RJ45 port supports 10/100/1000Mbps Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX. The switch also supports 802.3x Flow control, external SFP, IGMP snooping V1/V2 as well as 4K MAC address.
Read more| Make | OT Systems |
|---|---|
| Manufacturer | OT Systems |
| Category | Video Surveillance>Switchers & Switches |
| Model code | ET8122M-S-DR |
| POE | Yes |
| Video inputs / ports | 10 |
| TX/RX | TX |
| Physical Specifications |
Dimensions mm: 59 x 121 x 165 Weight g: 1,000 |
| Electrical Specifications |
Voltage: 12 ~ 48 V DC Power Consumption: 8 W |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 5 ~ 95 |
| Additional info | OT Systems ET8122M-S-DR is an industrial web-smart Ethernet switch offering 8 port 10/100Base-TX plus 2 port 10/100/1000Base-TX/SFP Combo. The RJ45 port supports 10/100Mbps-Full/Half-deplex, Auto-negotiation, Auto MDI/MDIX while the Combo RJ45 port supports 10/100/1000Mbps Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX. The switch also supports 802.3x Flow control, external SFP, IGMP snooping V1/V2 as well as 4K MAC address. |
