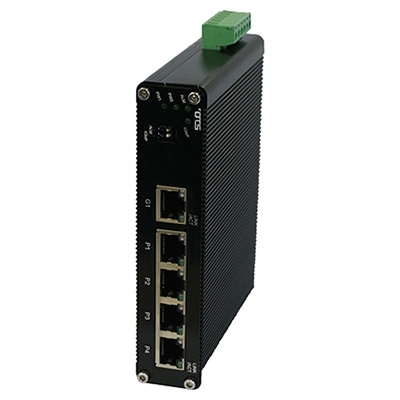

OT Systems ET5200Pp-DR Industrial IP CCTV Self-configured 5-port 10/100/1000Base-TX (4-port PoE+) Ethernet Switch
Technical Specification
Features:
- Make: OT Systems
- Model code: ET5200Pp-DR
- Series: ET5200Pp Series
- Switcher Type: IP
- POE: Yes
Additional info:
ET5200Pp-DR is an industrial IP CCTV self-configured 5-port 10/100/1000Base-TX Ethernet switch featuring 1M bits frame buffer memory and 9K bytes jumbo frame. The Ethernet switch supports light hardware IGMP V1, V2, V3 and supports broadcast storm control.
Read more| Make | OT Systems |
|---|---|
| Manufacturer | OT Systems |
| Category | Video Surveillance>Switchers & Switches |
| Model code | ET5200Pp-DR |
| Switcher Type | IP |
| POE | Yes |
| Video inputs / ports | 5 |
| TX/RX | TX |
| Physical Specifications |
Dimensions mm: 31 x 120 x 148 Weight g: 500 |
| Electrical Specifications |
Voltage: 48 ~ 57 V DC Power Consumption: 125 W |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 5 ~ 95 |
| Additional info |
ET5200Pp-DR is an industrial IP CCTV self-configured 5-port 10/100/1000Base-TX Ethernet switch featuring 1M bits frame buffer memory and 9K bytes jumbo frame. The Ethernet switch supports light hardware IGMP V1, V2, V3 and supports broadcast storm control. |
