OT Systems EC5100P Unmanaged 4-port 10/100Base-TX (PoE) Ethernet Switch

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

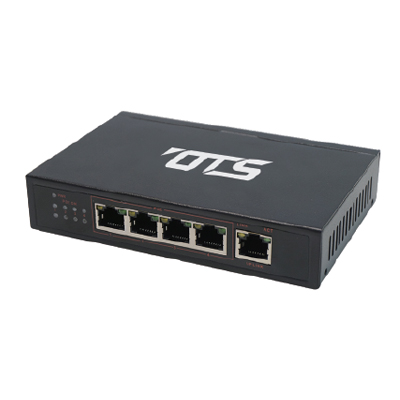

OT Systems EC5100P Unmanaged 4-port 10/100Base-TX (PoE) Ethernet Switch

Features:

Make: OT Systems
Model code: EC5100P
Switcher Type: IP
POE: Yes
Video inputs / ports: 4

Additional info:

Supports IEEE802.3af PoE (15.4W per port) Supports auto-negotiation and auto MDI/MDI-X Supports store-and-forward transmission Supports power saving technology

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	OT Systems
Manufacturer	OT Systems
Category	Video Surveillance>Switchers & Switches
Model code	EC5100P
Switcher Type	IP
POE	Yes
Video inputs / ports	4
TX/RX	TX
Physical Specifications	Dimensions mm: 140 x 91 x 28 Weight g: 300
Electrical Specifications	Voltage: 48 V DC Power Consumption: 48 W
Environmental Specifications	Operating Temperature ^oC: 0 ~ 45 C (32 ~ 113 F) Operating Humidity %: 0 ~ 90
Additional info	Supports IEEE802.3af PoE (15.4W per port) Supports auto-negotiation and auto MDI/MDI-X Supports store-and-forward transmission Supports power saving technology
