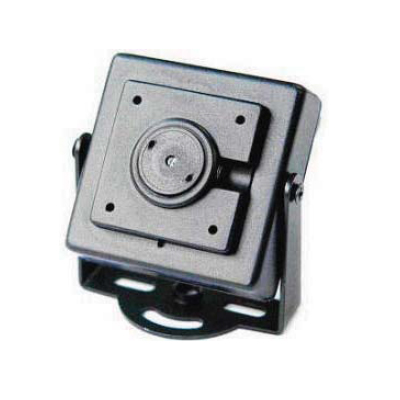

LTV Europe LTV CSB-302 02 Analog Miniature Camera
Technical Specification
Features:
- Make: LTV Europe
- Model code: LTV CSB-302 02
- Chip Inch Size ": 1/3
- Color Type: True Day / Night
- Resolution TVL: 1000
Additional info:
1/3” SONY CMOS Sensor 3 Megapixel resolution High sensitivity Progressive Scan WDR function Quick zoom and motion detection Smart Defog function 3D DNR noise reduction
Read more| Make | LTV Europe |
|---|---|
| Manufacturer | LTV Europe Sicherheitstechnik GmbH |
| Category | Video Surveillance>Surveillance cameras |
| Model code | LTV CSB-302 02 |
| Chip Inch Size " | 1/3 |
| Color Type | True Day / Night |
| Resolution TVL | 1000 |
| Digital (DSP) | Yes |
| Auto Iris | Yes |
| Sensitivity lux | 0.03 ~ 0.1 |
| Electrical Specifications | Voltage: 12 V DC |
| Motion Activated | Yes |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Gamma Correction | 0.45 ~ 0.65 |
| Electronic Shutter range | 50 ~ 60,000s |
| S/ N (Signal/ Noise) Ratio dB | >55 |
| Synchronisation | Internal |
| Signal Mode | NTSC, PAL |
| Mini or Compact | Mini |
| Zoom | Yes |
| Video Output | 1.0 Vp-p 75 Ohms |
| Physical Specifications |
Dimension mm: 36 x 36 Weight g: 100 |
| Environmental Specifications |
Operating Temperature oC: -10 ~ +50 C (+14 ~ +122 F) Operating Humidity %: 0 ~ 90 |
| Additional info |
|
