Fermax WIT Intercom System Specifications

MEET IP System By FERMAX

Product Profile

Thanks to WIT door entry monitor touch interface the user is able to take calls to the home, manage missed calls, view captured images, read messages sent by the administrator, visualize aerial camera images, activate external relays, get notifications about alarms on the monitor and guard unit, and even manage the home automation system. WIT's exclusive aesthetics are underpinned by an innovative technology that allows the installation of APPs (APPs have to be FERMAX certified and configured by authorized installers). For simplicity of installation, WIT monitors allow PoE power supply, this means that it makes use of PoE switch power and no dedicated power supply is required.

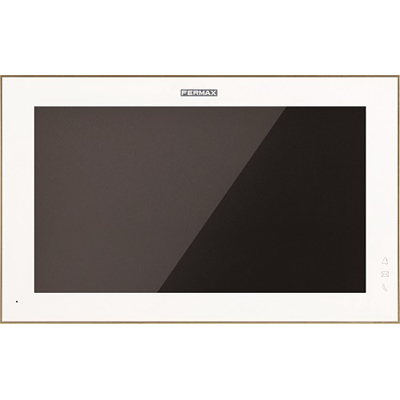

WIT 10" monitor is specially designed for home automation integration, since it is the only monitor that incorporates 2 RJ-45 network interfaces to be able to connect to both the community IP network and the apartment's local network, maintaining both the isolation between networks and flexibility in connectivity. Its surface or embedded installation allows it to adapt to the most demanding architectural designs.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Fermax
Manufacturer	Fermax Electrónica S.A.U.
Category	Access Control>Intercom Systems
Model code	WIT
Type of Kit/ System	Video & Audio
Mount Type	Surface Mount
Panel Color	White / black / Gold
Environmental Specifications	Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F) Operating Humidity %: 20 ~ 85 Protection: IP30
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 200 ~ 500 mA
Additional info	Capacitive Touch Screen (7” / 10”) Hands Free Audio Communication High definition color TFT Different ringtones depending on call source 3 Different color options (white, black, gold) Remote firmware upgrade Android based Available in 8 languages (English, Spanish, German, Polish, Russian, Hebrew, Turkish, Chinese) Door bell connection with IP camera visualization IP CCTV visualization (up to 8) Aux IP CCTV camera visualization and aux relay operation during call (up to 4) Relay activation (up to 8 using relay module) Home Automation Ready through Apps (in 7” and 10”) Automatic and Manual Picture Capture Integrated 7 zones alarm + tamper
Download PDF version Download PDF version

Make

Fermax

Manufacturer

Fermax Electrónica S.A.U.

Category

Access Control>Intercom Systems

Model code

WIT

Type of Kit/ System

Video & Audio

Mount Type

Surface Mount

Panel Color

White / black / Gold

Environmental Specifications

Operating Temperature ^oC: -10 ~ +55 C (14 ~ 131 F)
Operating Humidity %: 20 ~ 85
Protection: IP30

Electrical Specifications

Voltage: 12 V DC, PoE
Power Consumption: 200 ~ 500 mA

Additional info

Capacitive Touch Screen (7” / 10”)
Hands Free Audio Communication
High definition color TFT
Different ringtones depending on call source

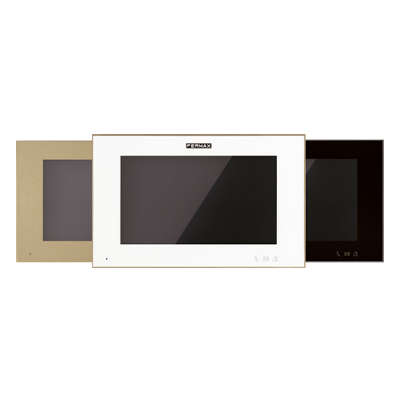

3 Different color options (white, black, gold)
Remote firmware upgrade
Android based
Available in 8 languages (English, Spanish, German, Polish, Russian, Hebrew, Turkish, Chinese)
Door bell connection with IP camera visualization
IP CCTV visualization (up to 8)
Aux IP CCTV camera visualization and aux relay operation during call (up to 4)
Relay activation (up to 8 using relay module)
Home Automation Ready through Apps (in 7” and 10”)
Automatic and Manual Picture Capture
Integrated 7 zones alarm + tamper
