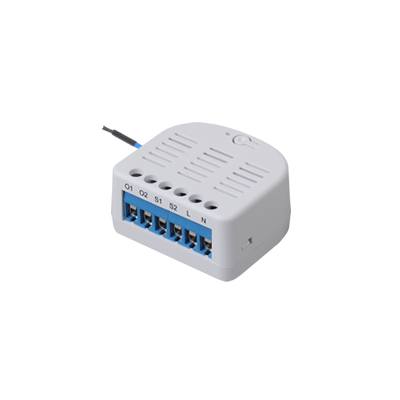

Climax Technology PRS3-CH1/2-ZBS Power Relay Controller / Relay Power Switch

Technical Specification

Features:
  • Make: Climax Technology
  • Model code: PRS3-CH1/2-ZBS
  • Switches: Yes
  • Voltage: 110 ~ 230 V
  • Dimensions mm: 42 x 38 x 21
Additional info:

Connected directly to power cables Enable the user to remotely turn on/off electronic appliances Capability to double as a ZigBee router associated with up to 40 end devices (PRS3-CH1/2-ZBSR) Compact and slim design Cut off power automatically when overheated Able to fit thicker cable sizes ranged from 14-22 AWG (1.63-0.64mm) PRS3-CH1-ZBS(R): 1 ChannelPRS3-CH2-ZBS(R): 2 Channels Extension terminals for connection to external switches Transmit supervision signal to report its condition regularly according to user setting LED status indicator Compatible with other manufacturers’ ZigBee products

Read more
Make Climax Technology
Manufacturer Climax Technology Co., Ltd.
Model code PRS3-CH1/2-ZBS
Switches Yes
Electrical Specifications Voltage: 110 ~ 230 V
Physical Specifications Dimensions mm: 42 x 38 x 21
Environmental Specifications OperatingTemp oC: -10 ~ +45 C (14 ~ 113 F)
Additional info
  • Connected directly to power cables
  • Enable the user to remotely turn on/off electronic appliances
  • Capability to double as a ZigBee router associated with up to 40 end devices (PRS3-CH1/2-ZBSR)
  • Compact and slim design
  • Cut off power automatically when overheated
  • Able to fit thicker cable sizes ranged from 14-22 AWG (1.63-0.64mm)
  • PRS3-CH1-ZBS(R): 1 Channel
    PRS3-CH2-ZBS(R): 2 Channels
  • Extension terminals for connection to external switches
  • Transmit supervision signal to report its condition regularly according to user setting
  • LED status indicator
  • Compatible with other manufacturers’ ZigBee products
