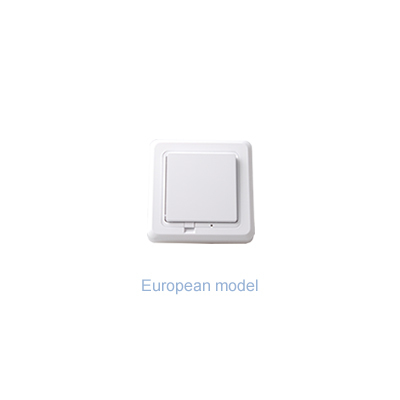

Climax Technology LS-1A/E-G-ZBS Light Switch (AC-Powered And Grounded Light Switch Series)

Technical Specification

Features:
  • Make: Climax Technology
  • Model code: LS-1A/E-G-ZBS
  • Switches: Yes
  • Voltage: 110 ~ 230 V
  • Dimensions mm: 120 x 70 x 50
Additional info:

Controls the on/off status of permanently installed lights Provides remote on/off control via a ZigBee network and manual on/off control via its rocker switch Power supply: 110-230V, 50/60Hz Maximum load: 5A Connects to neutral, load, and line wires LED indicates the switch location in a dark room May be used in a new installation or replace an existing wall switch

Read more
Make Climax Technology
Manufacturer Climax Technology Co., Ltd.
Model code LS-1A/E-G-ZBS
Switches Yes
Electrical Specifications Voltage: 110 ~ 230 V
Physical Specifications Dimensions mm: 120 x 70 x 50
Environmental Specifications OperatingTemp oC: -10 ~ +45 C (14 ~ 113 F)
Additional info
  • Controls the on/off status of permanently installed lights
  • Provides remote on/off control via a ZigBee network and manual on/off control via its rocker switch
  • Power supply: 110-230V, 50/60Hz
  • Maximum load: 5A
  • Connects to neutral, load, and line wires
  • LED indicates the switch location in a dark room
  • May be used in a new installation or replace an existing wall switch
