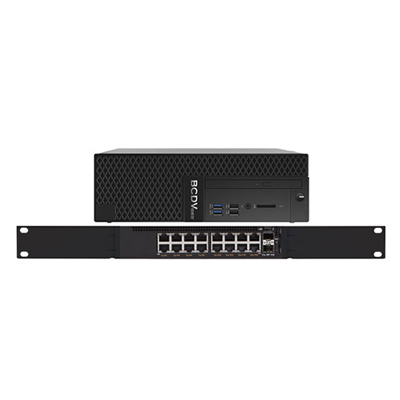

BCDVideo BCDSF02P-16P-SSP Small Form Factor Video Recording Server & 16-Port PoE Network Switch

Technical Specification

Features:
  • Make: BCDVideo
  • Model code: BCDSF02P-16P-SSP
  • Video Inputs: 16
  • System Requirements: Windows 10 Pro
  • Voltage: PoE
Additional info:

Up to 16 Cameras (on a single network)* Up to 10TB of Raw Storage Intel® Core® i7-8700 8th Generation Processor Windows 10 Pro Video Surveillance Grade SATA Hard Drives 246W PoE Budget (15W~ Per Port) 26.8Mpps Frame Forwarding Rate 36Gbps Switch Fabric Capacity 5-Year, On-Site, NBD, Keep Your Hard Drive Warranty

Read more
Make BCDVideo
Manufacturer BCDVideo
Model code BCDSF02P-16P-SSP
Video Inputs 16
System Requirements System Requirements: Windows 10 Pro
Electrical Specifications Voltage: PoE
Power Consumption: 246W PoE Budget (15W~ Per Port)
Additional info
  • Up to 16 Cameras (on a single network)*
  • Up to 10TB of Raw Storage
  • Intel® Core® i7-8700 8th Generation Processor
  • Windows 10 Pro
  • Video Surveillance Grade SATA Hard Drives
  • 246W PoE Budget (15W~ Per Port)
  • 26.8Mpps Frame Forwarding Rate
  • 36Gbps Switch Fabric Capacity
  • 5-Year, On-Site, NBD, Keep Your Hard Drive Warranty
