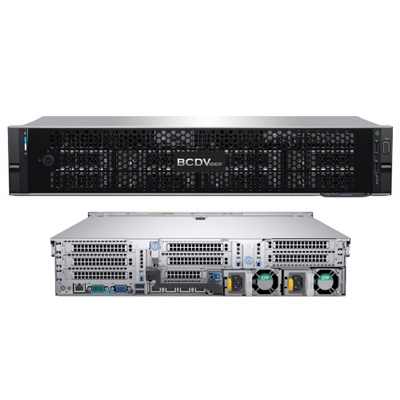

BCDVideo BCD208-ARA-GPU 2U 8-Bay Rackmount Video Analytics Server

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

BCDVideo BCD208-ARA-GPU 2U 8-Bay Rackmount Video Analytics Server

Features:

Make: BCDVideo
Model code: BCD208-ARA-GPU
Video Outputs: (1) VGA
System Requirements: Windows 10 Pro, Upgradable to Windows Server 2012 R2/2016
Dimensions mm: 434 x 646 x 87

Additional info:

The BCD208-ARA-GPU easily accommodates for video storage growth with support for up to eight 3.5" hard drives and support of RAID 5/6 for data protection and optimized performance. Ensure fast response times with up to 2 Intel® Xeon® 6130. Guarantee the highest quality of graphics processing with up to 4 NVidia P4000 GPUs. Discover greater versatility with enhanced storage options including two SSD drives to accelerate system boot/reboot time. Lifetime technical support and a 5-Year, full system, next business day warranty. Protect your data integrity and mitigate risk and liability with the standard Keep Your Hard Drive warranty feature. The BCD208-ARA-GPU is an excellent platform designed for a wide range of video surveillance applications needing an affordable, 2-socket rack server.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	BCDVideo
Manufacturer	BCDVideo
Category	Video Surveillance>Video servers (IP transmission)
Model code	BCD208-ARA-GPU
Video Outputs	(1) VGA
System Requirements	System Requirements: Windows 10 Pro, Upgradable to Windows Server 2012 R2/2016
Physical Specifications	Dimensions mm: 434 x 646 x 87 Weight g: 14,200
Electrical Specifications	Power Consumption: 1600W Voltage: 100 ~ 240 V AC
Environmental Specifications	Operating Temperature ^oC: 10 ~ 35 C (50 ~ 95 F) Operating Humidity %: 5 ~ 90
Additional info	The BCD208-ARA-GPU easily accommodates for video storage growth with support for up to eight 3.5" hard drives and support of RAID 5/6 for data protection and optimized performance. Ensure fast response times with up to 2 Intel® Xeon® 6130. Guarantee the highest quality of graphics processing with up to 4 NVidia P4000 GPUs. Discover greater versatility with enhanced storage options including two SSD drives to accelerate system boot/reboot time. Lifetime technical support and a 5-Year, full system, next business day warranty. Protect your data integrity and mitigate risk and liability with the standard Keep Your Hard Drive warranty feature. The BCD208-ARA-GPU is an excellent platform designed for a wide range of video surveillance applications needing an affordable, 2-socket rack server.
