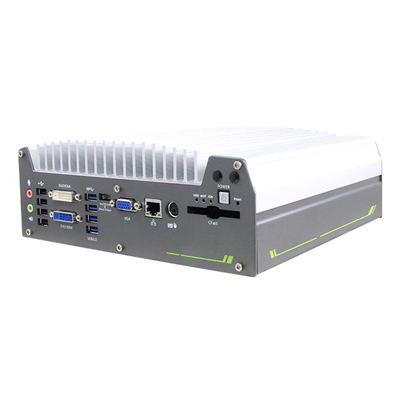

BCDVideo BCD-RGD-3700 Extreme Temperature Video Server

Technical Specification

Features:
  • Make: BCDVideo
  • Model code: BCD-RGD-3700
  • Series: Rialto I4
  • Dimensions mm: 86 x 240 x 225
  • Weight g: 4,200
Additional info:

The Rigid 3000 Servers support terabytes of storage on an embedded platform with reliability and durability. A shock absorbing bracket design protects the 3.5” HDD from shock/vibration. In addition, the unique isolation/conduction chamber manages heat generated by the 3.5” HDD and increases overall system stability. Optional isolated DIO with COS (change-of-state) interrupt supports a wider range of applications. Its compact chassis also accommodates both the 2.5” HDD/SSD and 3.5” HDD.

Read more
Make BCDVideo
Manufacturer BCDVideo
Model code BCD-RGD-3700
Series Rialto I4
Physical Specifications Dimensions mm: 86 x 240 x 225
Weight g: 4,200
Electrical Specifications Power Consumption: 46.9W (2.47A@19V)
Voltage: 8 ~ 35 V
Environmental Specifications Operating Temperature oC: -25 ~ +70 C (-13 ~ +158 F)
Additional info

The Rigid 3000 Servers support terabytes of storage on an embedded platform with reliability and durability. A shock absorbing bracket design protects the 3.5” HDD from shock/vibration. In addition, the unique isolation/conduction chamber manages heat generated by the 3.5” HDD and increases overall system stability. Optional isolated DIO with COS (change-of-state) interrupt supports a wider range of applications. Its compact chassis also accommodates both the 2.5” HDD/SSD and 3.5” HDD.
