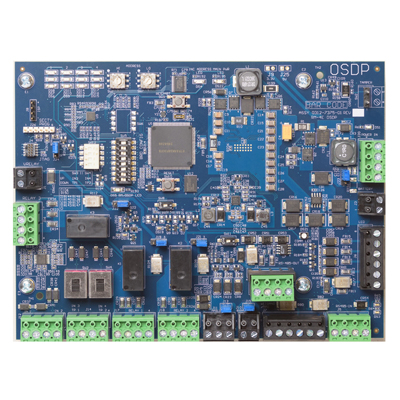

Software House G2-RM-4E-5PK OSDP/RM-4E - G2 - Enhanced RM-4 board, 5-Pack Five modules shipped in one package

Technical Specification

Features:

Make: Software House
Model code: G2-RM-4E-5PK
Communication Type: RS485 half-duplex, OSDP or RM protocol, dip switch selectable
Universal / Wiegand Reader Interface: Yes
Voltage: 12 V DC / 24 V DC

Additional info:

Cost Effective Wiring - Full-featured local door control module lowers wiring costs & reduces installation time Distributed I/O for One Door - Lower wiring costs by keeping it local.Up to 4 supervised inputs, 3 outputs in a compact door module Status LEDs on inputs and outputs for flexible control and troubleshooting. Versatile Communication - Choice of OSDP* Secure Channel or Software House “RM” via onboard dip switch. Plug-in screw terminals and built-in tamper switch provides secure and efficient installation Flexible Output Wiring Choices - Additional internal connections support magnetic lock features and accommodate local bypass switch.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Software House
Manufacturer	Software House, Tyco International
Category	Access Control>Access control controllers
Model code	G2-RM-4E-5PK
Communication Type	RS485 half-duplex, OSDP or RM protocol, dip switch selectable
Universal / Wiegand Reader Interface	Yes
Electrical Specifications	Voltage: 12 V DC / 24 V DC
Physical Specifications	Dimensions mm: 356 x 305 x 89 Weight g: 4500
Environmental Specifications	Operating Temp ^oC: 0 ~ 50 C (32 ~ 122 F)
Additional info	Cost Effective Wiring - Full-featured local door control module lowers wiring costs & reduces installation time Distributed I/O for One Door - Lower wiring costs by keeping it local.Up to 4 supervised inputs, 3 outputs in a compact door module Status LEDs on inputs and outputs for flexible control and troubleshooting. Versatile Communication - Choice of OSDP* Secure Channel or Software House “RM” via onboard dip switch. Plug-in screw terminals and built-in tamper switch provides secure and efficient installation Flexible Output Wiring Choices - Additional internal connections support magnetic lock features and accommodate local bypass switch.
