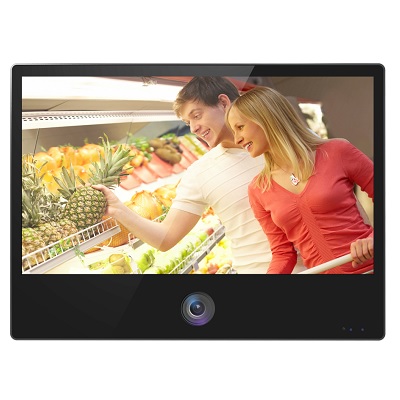

Perfect Display Technology PVM240-ATC 23.6 Inch Multi Display Function Monitor

Technical Specification

Features:
  • Make: Perfect Display Technology
  • Model code: PVM240-ATC
  • Series: AHD PVM
  • Effective Screen Size Inches: 23.6
  • Resolution TVL: 1920 x 1080
Additional info:

Max. Resolution: 1920 x 1080 @ 60Hz Viewing Angle (H/V): 178° / 178° Camera Type: 2 Mega Pixel AHD/TVI/CVI Hybrid Camera, with True WDR AV (composite) In : 1x BNC Camera Out: 1x BNC Input Interface: HDMI In / VGA In (15Pin D-Sub) / AV / CVBS Multi Display Function: PIP / PBP / VOV

Read more
Make Perfect Display Technology
Manufacturer Perfect Display Technology Company Ltd
Model code PVM240-ATC
Series AHD PVM
Effective Screen Size Inches 23.6
Resolution TVL 1920 x 1080
Weight kg 10
Environmental Specifications Operating Temperature oC: -10 ~ +50 C (14 ~ 122 F)
Operating Humidity %: 5 ~ 90
Electrical Specifications Power Consumption: 50 W
Voltage: 110 ~ 240 V AC
Additional info
  • Max. Resolution: 1920 x 1080 @ 60Hz
  • Viewing Angle (H/V): 178° / 178°
  • Camera Type: 2 Mega Pixel AHD/TVI/CVI Hybrid Camera, with True WDR
  • AV (composite) In : 1x BNC
  • Camera Out: 1x BNC
  • Input Interface: HDMI In / VGA In (15Pin D-Sub) / AV / CVBS
  • Multi Display Function: PIP / PBP / VOV
Download PDF version Download PDF version
