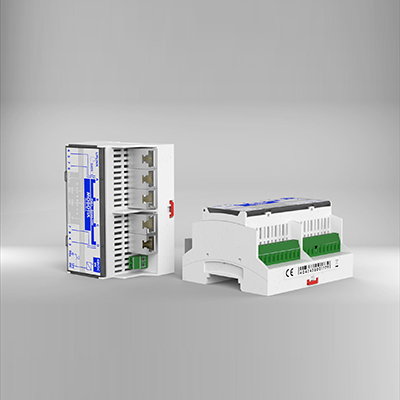

MOBOTIX MX-SWITCH1 With Four PoE+ Powered Network Ports

Technical Specification

Features:

Make: MOBOTIX
Model code: MX-SWITCH1
Switcher Type: IP
POE: Yes
Video inputs / ports: 5

Additional info:

Easy to install on TS35 DIN rails, width: 6HP (108 mm) Four PoE+ powered network ports RJ45 (max. 25,5 W per port, max. 75 W total load on all four PoE+ ports combined) One RJ45 network port for connecting to switch, router or computer (uplink) Built-in 12 V DC/1 A power supply for door opener (e.g., switched on/off by BellRFID or KeypadRFID) Unused wire pairs 4/5 and 7/8 on network installation cable for PoE ports A/D available directly on screw terminals (MxSplit) Pushbutton inside applies 12 V DC for 90 seconds to terminals 17/18 (for purposes of temporarily overriding anti-theft lock in frame of Door Stations and MxDisplay+ units) Future expansion option for DIN rail modules already integrated (backbone)

Contact manufacturer Contact manufacturer

Make	MOBOTIX
Manufacturer	MOBOTIX Corp
Category	Video Surveillance>Switchers & Switches
Model code	MX-SWITCH1
Switcher Type	IP
POE	Yes
Video inputs / ports	5
Electrical Specifications	Voltage: 12 V DC
Additional info	Easy to install on TS35 DIN rails, width: 6HP (108 mm) Four PoE+ powered network ports RJ45 (max. 25,5 W per port, max. 75 W total load on all four PoE+ ports combined) One RJ45 network port for connecting to switch, router or computer (uplink) Built-in 12 V DC/1 A power supply for door opener (e.g., switched on/off by BellRFID or KeypadRFID) Unused wire pairs 4/5 and 7/8 on network installation cable for PoE ports A/D available directly on screw terminals (MxSplit) Pushbutton inside applies 12 V DC for 90 seconds to terminals 17/18 (for purposes of temporarily overriding anti-theft lock in frame of Door Stations and MxDisplay+ units) Future expansion option for DIN rail modules already integrated (backbone)
