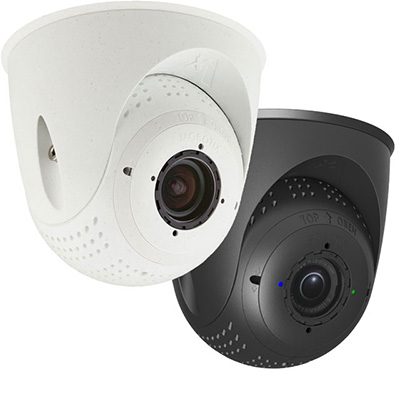

MOBOTIX MX-PTMount-OPT-PW PTMount

Technical Specification

Features:
  • Make: MOBOTIX
  • Model code: MX-PTMount-OPT-PW
  • Type of Mount: Camera Mounts
  • Mount Position: Ceiling, Wall
  • Protection: IP66
Additional info:

Manually adjustable dome mount for one sensor module (not included) Features three axes that allow it to compensate for sideway tilt and to re-align the image horizon horizontally when mounted to a wall Suitable for all available sensor modules for S14D/S15D (MX-SM-Dxx or MX-SM-Nxx) Concealed cabling, weatherproof from -30 to +60°C/-22 to 140°F (IP66) Suitable for ceiling or wall installation

Read more
Make MOBOTIX
Manufacturer MOBOTIX Corp
Model code MX-PTMount-OPT-PW
Type of Mount Camera Mounts
Mount Position Ceiling, Wall
Environmental Specifications Protection: IP66
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F) oC operating temperature
Additional info
  • Manually adjustable dome mount for one sensor module (not included)
  • Features three axes that allow it to compensate for sideway tilt and to re-align the image horizon horizontally when mounted to a wall
  • Suitable for all available sensor modules for S14D/S15D (MX-SM-Dxx or MX-SM-Nxx)
  • Concealed cabling, weatherproof from -30 to +60°C/-22 to 140°F (IP66)
  • Suitable for ceiling or wall installation
