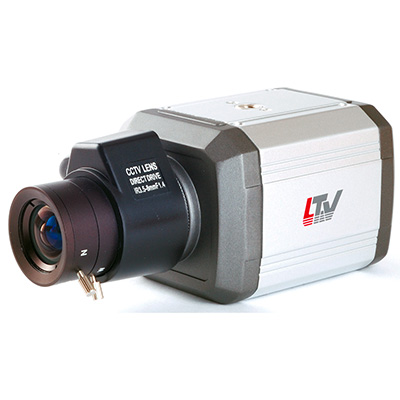

LTV Europe LTV-CDH-421 650 TV Lines Real Day/night Analog Box Camera

Please note: this is a discontinued product.

Go to Replacement product

Features:

Additional info:

LTV Europe LTV-CDH-421 day/night analog box camera has 12 zone masking and OSD menu. It is suitable for indoor operations.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	LTV Europe
Manufacturer	LTV Europe Sicherheitstechnik GmbH
Category	Video Surveillance>Surveillance cameras
Model code	LTV-CDH-421
Chip Inch Size "	1/3
Color Type	Color / Monochrome
Resolution TVL	650
Digital (DSP)	Yes
HD	Yes
Auto Iris	Yes
Sensitivity lux	0.0001
Lens Mount	C/CS
Electrical Specifications	Voltage: 12 V DC Power Consumption: 100 mA
Motion Activated	Yes
Wide Dynamic Range	Yes
Picture Elements HxV	795 x 596
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Gamma Correction	0.45
Electronic Shutter range	1/50 ~ 1/100 000s
S/ N (Signal/ Noise) Ratio dB	>52
Synchronisation	Internal
Signal Mode	PAL
Video Output	1.0 Vp-p / 75 ?hm
Physical Specifications	Dimension mm: 64 x 58 x 95 Weight g: 400
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50 C (14 ~ 122 F)
Additional info	LTV Europe LTV-CDH-421 day/night analog box camera has 12 zone masking and OSD menu. It is suitable for indoor operations.
