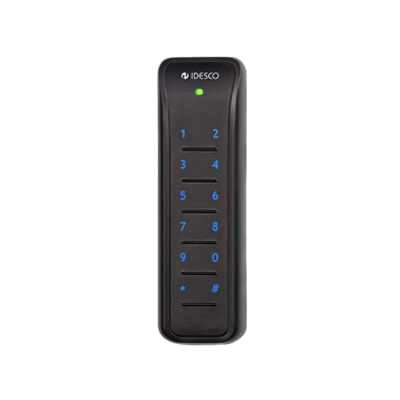

Idesco 7 AH Pin Reliable Pin Code Reader With Low Power Consumption

Technical Specification

Features:

Make: Idesco
Model code: 7 AH Pin
Reader Type: Proximity
IP Rating: IP67
Keypad Integrated: Yes

Additional info:

Durable and reliable proximity reader with pin code identification Extremely low power consumption – up to 60 % more energy-efficient Eco-sensitive construction A number of features (LED color configurability, buzzer modes, optical tamper, etc.)

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Idesco
Manufacturer	Idesco
Model code	7 AH Pin
Reader Type	Proximity
IP Rating	IP67
Keypad Integrated	Yes
LED / Beep	Three color LED / Buzzer
Color	Black
Electrical Specifications	Voltage: +10 .... +30 VDC
Physical Specifications	Dimensions mm: 141 x 43 x 19
Environmental Specifications	Operating Temp ^oC: -40 ~ +55 C (-40 ~ +131 F)
Protection	IP67, IP54, IK-09
Additional info	Durable and reliable proximity reader with pin code identification Extremely low power consumption – up to 60 % more energy-efficient Eco-sensitive construction A number of features (LED color configurability, buzzer modes, optical tamper, etc.)
