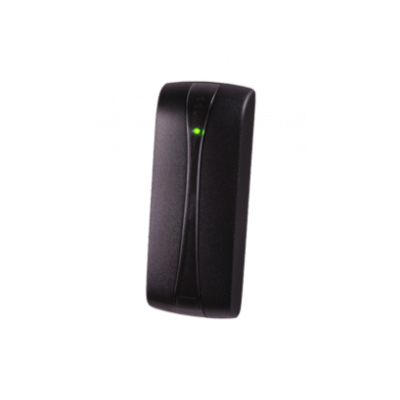

Idesco 7 AH Reliable Proximity Reader With Low Power Consumption

Technical Specification

Features:

Make: Idesco
Model code: 7 AH
Reader Type: Proximity
IP Rating: IP67
LED / Beep: Three-color LED / Buzzer

Additional info:

Durable and reliable proximity reader Extremely low power consumption – up to 60 % more energy-efficient Eco-sensitive construction Highly configurable, number of features (LED colour configurability, buzzer modes, optical tamper etc.)

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Idesco
Manufacturer	Idesco
Model code	7 AH
Reader Type	Proximity
IP Rating	IP67
LED / Beep	Three-color LED / Buzzer
Color	Black
Wiegand Interface	Yes
Clock-and-Data Interface	Yes
Electrical Specifications	Voltage: +10 .... +30 VDC
Physical Specifications	Dimensions mm: 95 x 62 x 24
Environmental Specifications	Operating Temp ^oC: -40 ~ +55 C (-40 ~ +131 F)
Protection	IP67, IK-10, IK-09
Additional info	Durable and reliable proximity reader Extremely low power consumption – up to 60 % more energy-efficient Eco-sensitive construction Highly configurable, number of features (LED colour configurability, buzzer modes, optical tamper etc.)
