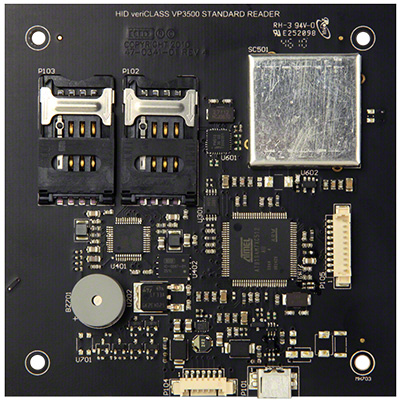

HID VeriCLASS 3500 Reader Board With Integrated Antenna

Technical Specification

Please note: this is a discontinued product.

Go to Replacement product

HID VeriCLASS 3500 Reader Board With Integrated Antenna

Features:

Make: HID
Model code: veriCLASS 3500 Reader Board
Reader Type: Mifare
LED / Beep: 4 x LEDs / 1 x Buzzer
Voltage: 3 ~ 5 V DC

Additional info:

veriCLASS Highlights: Supports multiple contactless technologies and credentials: FeliCa™, iCLASS®, MIFARE®, DESFire®, NFC, ISO 14443 A/B, and ISO 15693 Supports multiple contactless payment communication protocols: Calypso®, MasterCard® PayPass™, Visa® payWave, American Express® expresspaySM Supports both open- and closedloop payment schemes Pre-certified to both FCC modular and CE standards Complete line includes reader modules, boards, integration tools and support Comprehensive Developer Tool Kit accelerates design-in cycles and speeds products to market Embedded Device Manager enables remote service, diagnostics and upgrades, facilitating life cycle management

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	HID
Manufacturer	HID
Category	Access Control>Access control readers
Model code	veriCLASS 3500 Reader Board
Reader Type	Mifare
LED / Beep	4 x LEDs / 1 x Buzzer
Electrical Specifications	Voltage: 3 ~ 5 V DC
Physical Specifications	Dimensions mm: 90 x 90 x 9 Weight g: 38
Environmental Specifications	Operating Temp ^oC: -25 ~ +85 C (-13 ~ +185 F) Operating Humidity %: 0 ~ 90
Additional info	veriCLASS Highlights: Supports multiple contactless technologies and credentials: FeliCa™, iCLASS®, MIFARE®, DESFire®, NFC, ISO 14443 A/B, and ISO 15693 Supports multiple contactless payment communication protocols: Calypso®, MasterCard® PayPass™, Visa® payWave, American Express® expresspaySM Supports both open- and closedloop payment schemes Pre-certified to both FCC modular and CE standards Complete line includes reader modules, boards, integration tools and support Comprehensive Developer Tool Kit accelerates design-in cycles and speeds products to market Embedded Device Manager enables remote service, diagnostics and upgrades, facilitating life cycle management
