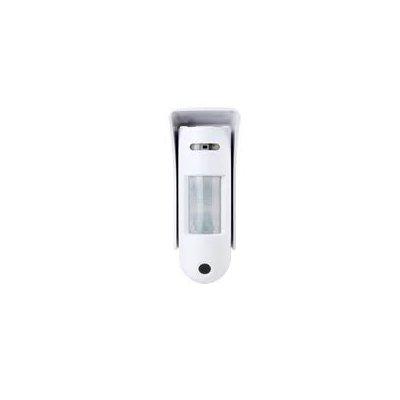

Climax Technology VST-892EX-BUS Series Outdoor Hardwired PIR Motion Sensor Camera

Technical Specification

Features:

Make: Climax Technology
Model code: VST-892EX-BUS Series

Additional info:

Detection Range: 10 meters Horizontal Angle: 90° Installation height: 2.3-2.5m Pet immunity configuration via jumper switch Anti-masking feature Night illumination capability IPX6 for outdoor usage Tamper protection to prevent unauthorized sabotage EN Compliance Input Voltage from Hybrid Panel: 13.5V DC Current Consumption: 0.83 mA (standby); 141.5 mA (maximal)

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Climax Technology
Manufacturer	Climax Technology Co., Ltd.
Category	Intruder Alarms>Intruder detectors
Model code	VST-892EX-BUS Series
Additional info	Detection Range: 10 meters Horizontal Angle: 90° Installation height: 2.3-2.5m Pet immunity configuration via jumper switch Anti-masking feature Night illumination capability IPX6 for outdoor usage Tamper protection to prevent unauthorized sabotage EN Compliance Input Voltage from Hybrid Panel: 13.5V DC Current Consumption: 0.83 mA (standby); 141.5 mA (maximal)
