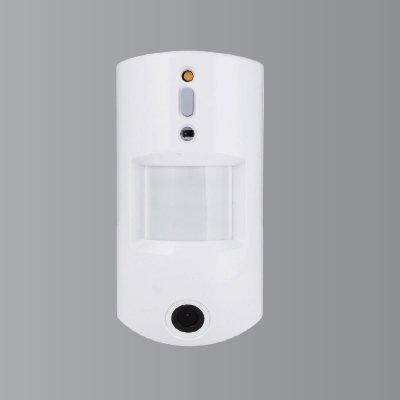

Climax Technology VST-892-BUS Hardwired PIR Motion Sensor Camera

Product Profile

The Climax wired security system is a comprehensive wired product line that provides sound protection suitable for a broad range of commercial application, offering another option besides Climax’s wireless security solution.

The newly introduced VST-892-BUS is a hardwired PIR motion sensor camera capable of sending captured images to the Hybrid Panel upon movement detection. In addition, VST-892EX-BUS is suitable for outdoor application. Climax also launches TSP-BUS, a hardwired Touchscreen keypad that provides access to arm/disarm/home arm the system and intuitive operation of the security system.

Other products from the wired security system include Keypads, Motion Sensor Cameras, Motion Detectors, Sirens, Bell Box, Door/Window Contact and Expansion Modules. Through BUS connection, the wired devices allow connection of several devices at once for enhanced flexibility and redundancy.

Read more

Technical Specification

Make Climax Technology
Manufacturer Climax Technology Co., Ltd.
Category Intruder Alarms>Intruder detectors
Model code VST-892-BUS
Additional info
  • Detection Range: 12 meters
  • Horizontal Angle: 90°
  • Installation height: 2.3-2.5m
  • Pet immunity enabled / disabled by remote control setting
  • Anti-masking feature
  • Night illumination capability
  • Tamper protection to prevent unauthorized sabotage
  • EN Compliance
  • Input Voltage from Hybrid Panel: 13.5V DC
  • Current Consumption: 0.87 mA (standby); 89.7 mA (maximal)
Download PDF version Download PDF version
