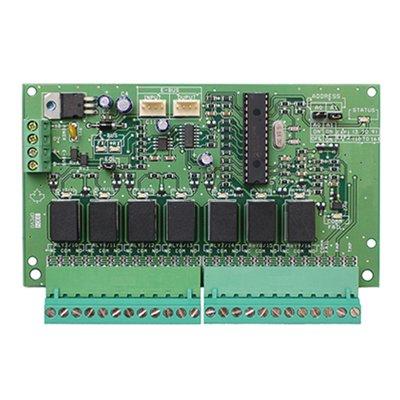

CDVI UK CAA-460P Relay Expansion Module

Technical Specification

Features:
  • Make: CDVI UK
  • Model code: CAA-460P
  • Voltage: 12 V DC
  • Power Consumption: 50 mA , 400 mA (maximum)
Additional info:

The CAA-460P Relay Expansion module provides an additional seven relays to the CTV900ATR controller. Up to two “plug and play” relay expansion modules can be added to each controller for a total of 16 relays per controller. The relay expansion modules are connected to the controller via a RS485 E-bus network, allowing you to install the relay expansion modules a maximum distance of 1220m from the controller. The module features an activation status LED for each relay, a communication failure LED with an associated output, a 24-hour anti-tamper input and supply monitoring. 7 x Form C relay outputs (C/NO/NC) Maximum 2 x CAA460P modules per CTV900ATR controller Direct connection to the expansion bus (E-Bus) 1220m max

Read more
Make CDVI UK
Manufacturer CDV International
Model code CAA-460P
Electrical Specifications Voltage: 12 V DC
Power Consumption: 50 mA , 400 mA (maximum)
Additional info

The CAA-460P Relay Expansion module provides an additional seven relays to the CTV900ATR controller. Up to two “plug and play” relay expansion modules can be added to each controller for a total of 16 relays per controller. The relay expansion modules are connected to the controller via a RS485 E-bus network, allowing you to install the relay expansion modules a maximum distance of 1220m from the controller. The module features an activation status LED for each relay, a communication failure LED with an associated output, a 24-hour anti-tamper input and supply monitoring.

  • 7 x Form C relay outputs (C/NO/NC)
  • Maximum 2 x CAA460P modules per CTV900ATR controller
  • Direct connection to the expansion bus (E-Bus)
  • 1220m max
