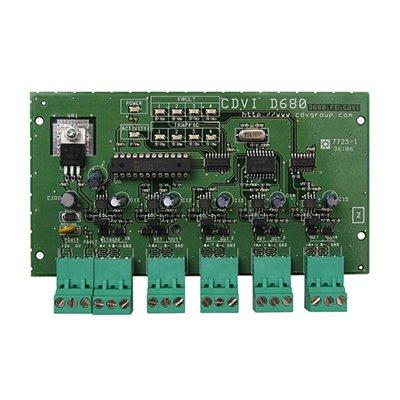

CDVI UK CAA-370P RS485 Network Hub For Star Configuration

Technical Specification

Features:

Make: CDVI UK
Model code: CAA-370P
Voltage: 12 V DC
Power Consumption: 100mA

Additional info:

Creates a star network for configuration of the RS485 bus. Excellent for large areas, or a location where a standard RS485 configuration is not possible. The CAA-370P is typically located the center of the existing RS485 network, and creates 4 independant RS485 networks while isolating electrical "noise". The LED display gives real-time indications of power, network and port activity. Connection to the RS485 bus of the CTV900ATR and the E- Bus of the expansion module Connection with the controllers or expansion modules up to 1200m distance Power supply: 12Vdc Consumption: 100mA max Transmission speed: 9600 or 19200 bps

Contact manufacturer Contact manufacturer

Make	CDVI UK
Manufacturer	CDV International
Category	Access Control>Access control accessories
Model code	CAA-370P
Electrical Specifications	Voltage: 12 V DC Power Consumption: 100mA
Additional info	Creates a star network for configuration of the RS485 bus. Excellent for large areas, or a location where a standard RS485 configuration is not possible. The CAA-370P is typically located the center of the existing RS485 network, and creates 4 independant RS485 networks while isolating electrical "noise". The LED display gives real-time indications of power, network and port activity. Connection to the RS485 bus of the CTV900ATR and the E- Bus of the expansion module Connection with the controllers or expansion modules up to 1200m distance Power supply: 12Vdc Consumption: 100mA max Transmission speed: 9600 or 19200 bps
