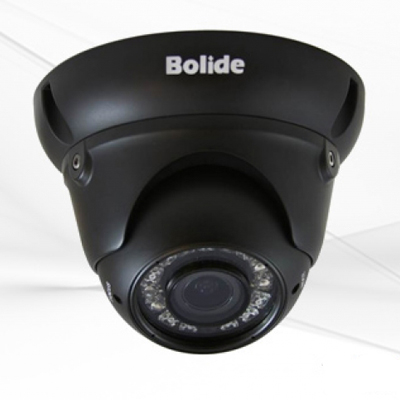

Bolide BC1909-IRODVA28 -1 Day/night CCTV Camera With 900TVL Resolution

Technical Specification

Features:
  • Make: Bolide
  • Model code: BC1909-IRODVA28 -1
  • Series: Raphael Series
  • Chip Inch Size ": 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

Bolide BC1909-IRODVA28 -1 day/night CCTV camera is powered by 1/3” 1.3 Megapixel Sony Progressive Image Sensor and new "Raphael" DSP, the camera produces an astonishing 900TVL resolution with unmatched color reproduction. The enhanced 3D noise reduction and an extended dynamic range ensures accurate textures and sharp images from every angle. The durable Super Flux IR LED’s make the camera ideal for night-time monitoring, and an onboard OSD control allows users to make adjustments to get the best picture in any environment. Its aesthetically pleasing IP66 rated “Snap-Fit“ housing design makes installation easy for both indoor and outdoor applications.

Read more
Make Bolide
Manufacturer Bolide Technology Group
Model code BC1909-IRODVA28 -1
Series Raphael Series
Chip Inch Size " 1/3
Color Type Color / Monochrome
Resolution TVL 900
HD Yes
Digital (DSP) Yes
Specialist Types Infrared
Auto Iris Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 100 mA
Motion Activated Yes
Focal Length mm 2.8 ~ 12
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Signal Mode NTSC
Zoom Yes
Video Output BNC
Physical Specifications Dimension mm: 152 x 118
Weight g: 780
Environmental Specifications Operating Temperature oC: -10 ~ +55 C (14 ~ 131 F)
Protection: IP66
Operating Humidity %: 10 ~ 85
Additional info Bolide BC1909-IRODVA28 -1 day/night CCTV camera is powered by 1/3” 1.3 Megapixel Sony Progressive Image Sensor and new "Raphael" DSP, the camera produces an astonishing 900TVL resolution with unmatched color reproduction. The enhanced 3D noise reduction and an extended dynamic range ensures accurate textures and sharp images from every angle. The durable Super Flux IR LED’s make the camera ideal for night-time monitoring, and an onboard OSD control allows users to make adjustments to get the best picture in any environment. Its aesthetically pleasing IP66 rated “Snap-Fit“ housing design makes installation easy for both indoor and outdoor applications.
