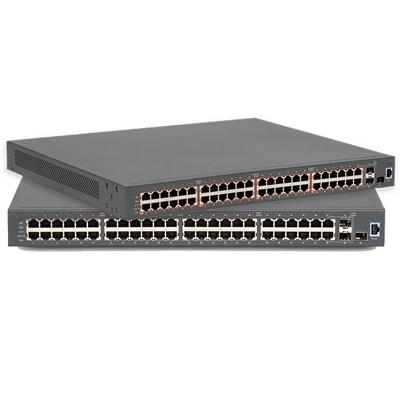

BCDVideo TTN-3549 Ethernet Routing Switch

Technical Specification

Features:
  • Make: BCDVideo
  • Model code: TTN-3549
  • Series: Edge-Core ECS5610-52S
  • Switcher Type: IP
  • POE: Yes
Additional info:

Instead of multiple protocols that create network complexity, the Titan 3549 Series (Ethernet Routing Switch) uses Avaya Fabric Connect software to reduce outages and increase performance speeds. This ensures that video is always available.

Read more
Make BCDVideo
Manufacturer BCDVideo
Model code TTN-3549
Series Edge-Core ECS5610-52S
Switcher Type IP
POE Yes
Video inputs / ports 50
Physical Specifications Dimensions mm: 45 x 440 x 405
Weight g: 6,150
Electrical Specifications Voltage: 100 V AC
Power Consumption: 65 ~ 370 W
Additional info

Instead of multiple protocols that create network complexity, the Titan 3549 Series (Ethernet Routing Switch) uses Avaya Fabric Connect software to reduce outages and increase performance speeds. This ensures that video is always available.
