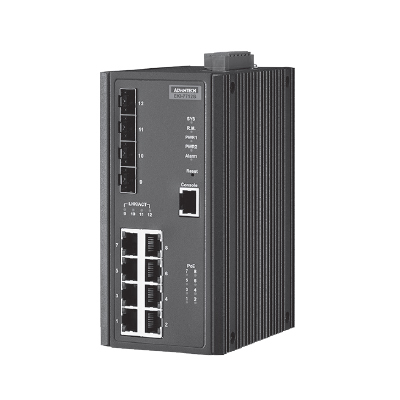

BCDVideo BCD-HES-804M 8G+4SFP Port Gigabit Managed Redundant Industrial PoE Switch

Technical Specification

Features:

Make: BCDVideo
Model code: BCD-HES-804M
Switcher Type: IP
POE: Yes
Video inputs / ports: 12

Additional info:

8 x IEEE 802.3 af/at PoE Gigabit ports + 4 x SFP ports SFP socket for easy and flexible fiber expansion Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D) IXM function enables fast deployment Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB NEMA TS2 for traffic control EN50121-4 approval for railway trackside deployment -40 ~ 75°C wide-range operating temperature (EKI-7712G-4FPI) Dual 48 VDC power input and 1 x relay output

Contact manufacturer Datasheet Datasheet

Make	BCDVideo
Manufacturer	BCDVideo
Model code	BCD-HES-804M
Switcher Type	IP
POE	Yes
Video inputs / ports	12
Physical Specifications	Dimensions mm: 74 x 152 x 105
Electrical Specifications	Voltage: 48 V DC (46 ~ 57 V DC) Power Consumption: 12.1W
Environmental Specifications	Operating Temperature ^oC: -40 ~ +75 C (-40 ~ +167 F) Protection: IP 30 Operating Humidity %: 10 ~ 95
Additional info	8 x IEEE 802.3 af/at PoE Gigabit ports + 4 x SFP ports SFP socket for easy and flexible fiber expansion Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D) IXM function enables fast deployment Security: 802.1x (port-based, MD5/TLS/TTLS/PEAP encryption), RADIUS Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB NEMA TS2 for traffic control EN50121-4 approval for railway trackside deployment -40 ~ 75°C wide-range operating temperature (EKI-7712G-4FPI) Dual 48 VDC power input and 1 x relay output
