Extend BIS Access Engine by the ability to control and manage doors that are not continuously online. Enjoy the advantages of centralized door management without the cost of a dedicated network. Choose from a wide range of compatible lock cylinders and door fittings.

Extend BIS Access Engine by the ability to control and manage doors that are not continuously online. Enjoy the advantages of centralized door management without the cost of a dedicated network. Choose from a wide range of compatible lock cylinders and door fittings.

Bosch APS-PSU-60 is a power supply unit with an integrated battery charging device, that supports 12 V/7 Ah, 12 V/14 Ah and 24 V/7 Ah batteries, with selectable 12 VDC or 24 VDC voltage output.

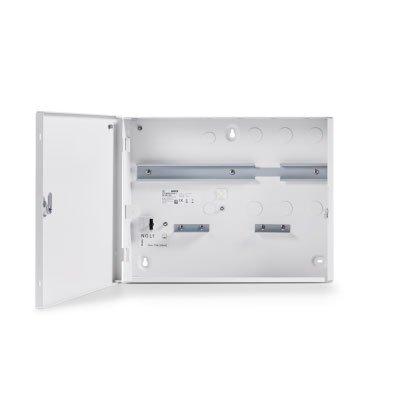

Produced in accordance with UL guidelines and is used for securely mounting and housing an AMC2 (Access Modular Controller) and a power supply unit 1 DIN rail system for easy mounting and replacement Designed for indoor wall mounting It ensures a secure installation and housing of one AMC2 or one AMC2 extension board, one power supply unit and two batteries The steel housing includes an LED for power indication, a tamper contact and pre-stamped knockouts

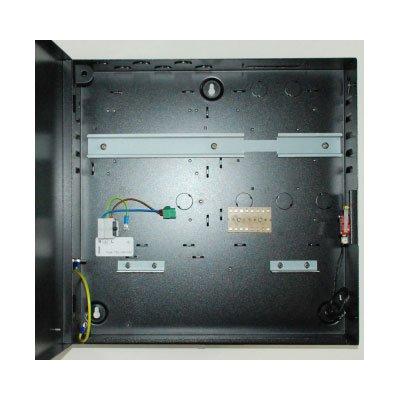

VdS 2119-compliant DIN-rail click system for easy mounting and replacement Tamper-detection AMC2 enclosure with single DIN rail and mountings for VdS 2119-compliant installation An AMC2 control panel within it may arm/disarm VdS-Class C intrusion detection systems

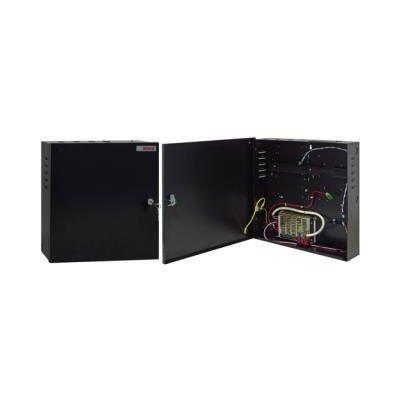

AMC2 enclosure with single din rail, power supply unit and pre-assembled cables Produced in accordance with strict guidelines and is used for securely mounting and housing an AMC2 (Access Modular Controller) and a power supply unit

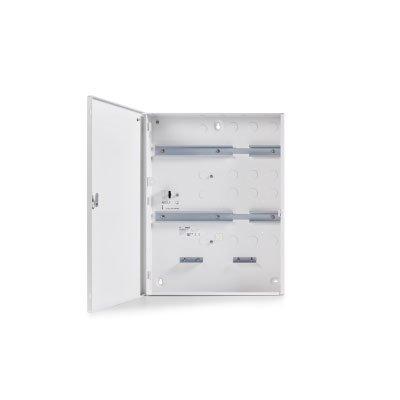

Produced in accordance with UL guidelines and is used for securely mounting and housing an AMC2 (Access Modular Controller) and a power supply unit 2 DIN rails Designed for indoor wall mounting It ensures a secure installation and housing of two AMC2 or two AMC2 extension boards, one power supply unit and two batteries The steel housing includes an LED for power indication, a tamper contact and pre-stamped knockouts

Integration of Bosch and third party systems via open interfaces and SDK All relevant information in one user interface, and intuitive operation via interactive maps and HTML5 action plans Fully embedded access control Full event log and audit trail for forensic investigations Scalable system that grows with your needs

RS485 connection to the AMC2 controller 16 inputs extension board, up to three per AMC Status of inputs and outputs shows on AMC2 LCD display Transfer rate to EXT interface (RS485): 9,6kBit/sec

RS485 connection to the AMC2 controller 16 inputs & 16 outputs extension board, up to three per AMC Status of inputs and outputs shows on AMC2 LCD display Transfer rate to EXT interface (RS485): 9,6kBit/sec

Integration of Bosch and third party systems via open interfaces and SDK All relevant information in one user interface, and intuitive operation via interactive maps and dynamic action plans Fully embedded access management Full event log and audit trail for forensic investigations Scalable system that grows with your needs

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator The wireless keyfob with synchronized encryption features increased immunity to replay attacks, providing even more reliable system security

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator Programmable option buttons The wireless keyfob with synchronized encryption features increased immunity to replay attacks, providing even more reliable system security

Water and dust resistant Arm, disarm and panic functions Assigned by user for accurate reporting of open close signals LED indicator Programmable option buttons

RS485 connection to the AMC2 controller 8 inputs & 8 outputs extension board, up to three per AMC Status of inputs and outputs shows on AMC2 LCD display Transfer rate to EXT interface (RS485): 9,6kBit/sec

13.56 MHz proximity reader, compatible with Bosch access modular controllers (AMC2), as well as access control software (BIS/ACE, AMS and APE) OSDP V2 Secure Channel, AES 128 bit encryption and Bosch coded MIFARE DESFire EV1 credential support for high level end-to-end security Support of multiple card technologies (standard iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, and MIFARE DESFire EV1) IP55 rating allows both indoor and outdoor installation

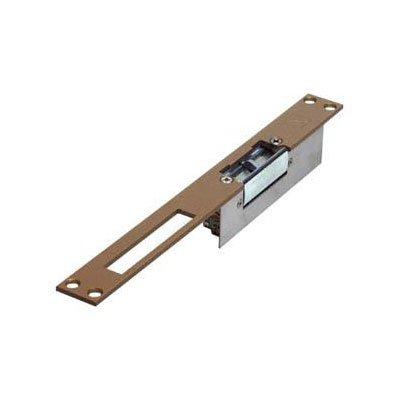

The door openers may only be operated with direct current in line with the rated voltage. Continuous contact (100% duty cycle) is possible Zero-potential feedback contact for signaling whether the door is open or closed Recovery diode for suppressing interfering pulses during the switching process Door opener with normal flat edge plate with bolt cut-out for house and room locks, can be adjusted universally for DIN left and right Door opener is unlocked with voltage. The door remains locked in the event of a power failure Adjustable and fixable door opener latch

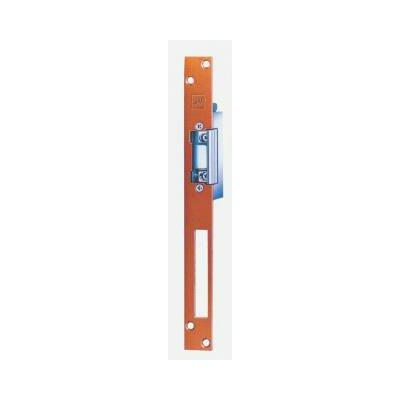

The door openers may only be operated with direct current in line with the rated voltage. Continuous contact (100% duty cycle) is possible Zero-potential feedback contact for signaling whether the door is open or closed Recovery diode for suppressing interfering pulses during the switching process Door opener with normal flat edge plate with bolt cut-out for house and room locks, can be adjusted universally for DIN left and right Door opener is unlocked with voltage. The door remains locked in the event of a power failure

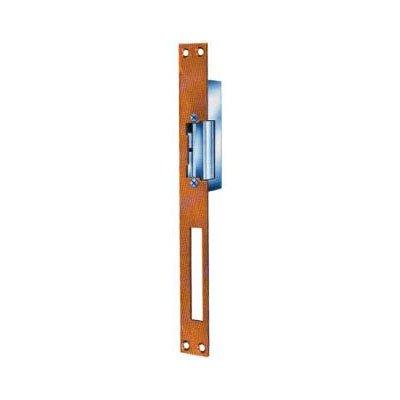

The door openers may only be operated with direct current in line with the rated voltage. Continuous contact (100% duty cycle) is possible Zero-potential feedback contact for signaling whether the door is open or closed Recovery diode for suppressing interfering pulses during the switching process Door opener with normal flat edge plate with bolt cut-out for house and room locks, can be adjusted universally for DIN left and right Door opener is unlocked with voltage. The door remains locked in the event of a power failure

13.56 MHz proximity reader compatible with access controllers with Wiegand interfaces Fully compatible with the Bosch Access Management portfolio, including the Management Software Systems (BIS/ACE, AMS and APE), the Access Modular Controller (AMC2), and the MIFARE and iCLASS credential portfolio Support of multiple card technologies (iCLASS SE, iCLASS Seos, MIFARE DESFire EV1) Quick reading response for high performance level The use of NFC on mobile phones to set up the communication with the reader enables mobile phones to be used as access credentials IP55 rating allows both indoor and outdoor installation

13.56 MHz proximity reader, compatible with Bosch access modular controllers (AMC2), as well as access control software (BIS/ACE, AMS and APE) OSDP V2 Secure Channel, AES 128 bit encryption and Bosch coded MIFARE DESFire EV1 credential support for high level end-to-end security Support of multiple card technologies (standard iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, and MIFARE DESFire EV1) Equipped with keypad The keypad functionality can also be used for a variety of access control features including the option to set a door to long-term open IP55 rating allows both indoor and outdoor installation

13.56 MHz proximity reader, compatible with Bosch access modular controllers (AMC2), as well as access control software (BIS/ACE, AMS and APE) OSDP V2 Secure Channel, AES 128 bit encryption and Bosch coded MIFARE DESFire EV1 credential support for high level end-to-end security Support of multiple card technologies (standard iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, and MIFARE DESFire EV1) IP55 rating allows both indoor and outdoor installation

The proximity read-only card offers universal compability with the Wiegand IF reader type W 3 The card includes an embedded antenna, and an RFID integrated circuit including a printed number on the surface of the card enabling contactless reading by readers The credit card sized card conforms to the ISO-standard size enabling surface printing with conventional ISO compatible card printers The card is durable with IP 68 and can be fully submerged, all the electronics are sealed inside

The proximity read-only clam shell card offers universal compability with the Wiegand IF reader type W 3 The card includes an embedded antenna, and an RFID integrated circuit including a printed number on the face of the card enabling contactless reading by readers Reliable and interference free Strong, flexible and resistant to breaking Photo ID compatible Pocket size The card is durable with IP 68 and can be fully submerged, all the electronics are sealed inside

The proximity read-only tag offers universal compability with the Wiegand IF reader type W 3 The tag includes an embedded antenna, and an RFID integrated circuit enabling infinite numbers of reads by Wiegand type W3 readers The key-ring sized credential tag is durable with IP 68 and can be fully submerged, all the electronics is sealed inside

Class-leading reading performance with powerful quad-core CPU technology The configuration allows four different access modes for the user - Card plus Fingerprint; Card or Fingerprint; Card only; Fingerprint only Flexibility with multi-card support due to dual-frequency RFID technology Supports most types of RFID card standards with a single device including MIFARE, HID iCLASS, DESFire, HID Prox and EM Features fake fingerprint prevention technology. Using dynamic pattern, liveness feature and unnatural feature analysis, the engine blocks fake fingerprints made from various materials including clay, rubber, glue, paper, film and others Equipped with the ability to read Bosch coded Mifare credentials, ensuring a straight-forward configuration and high level of security Integration with AMS and BIS/ACE 4.5 (and later versions) for easy enrollment and configuration of fingerprint templates and card data Rugged IP67/IK09 housing for tough environment and outdoor installations

13.56 MHz proximity reader compatible with access controllers with Wiegand interfaces Fully compatible with the Bosch Access Management portfolio, including the Management Software Systems (BIS/ACE, AMS and APE), the Access Modular Controller (AMC2), and the MIFARE and iCLASS credential portfolio Support of multiple card technologies (iCLASS SE, iCLASS Seos, MIFARE DESFire EV1) Equipped with keypad The keypad functionality can also be used for a variety of access control features including the option to set a door to long-term open Quick reading response for high performance level The use of NFC on mobile phones to set up the communication with the reader enables mobile phones to be used as access credentials IP55 rating allows both indoor and outdoor installation
