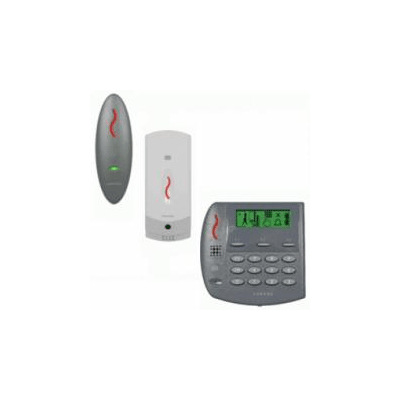

Gallagher Prox (125 KHz) Access Control Readers
Technical Specification
Features:
- Make: Gallagher
- Model code: Prox (125 kHz)
- Series: 125 Series
- Long Range: Yes
- Reader Type: Proximity
Additional info:
The Gallagher Prox Readers are multimode readers supporting the widely available 125kHz proximity cards and keyfobs. This enables Gallagher Prox 125 kHz Readers to read both Cardax IV format, as well as a variety of Wiegand formats as provided by other reader manufacturers, such as Motorola, HID, Casi-Rusco and EM ASK.
Read more| Make | Gallagher |
|---|---|
| Manufacturer | Gallagher Security |
| Category | Access Control>Access control readers |
| Model code | Prox (125 kHz) |
| Long Range | Yes |
| Reader Type | Proximity |
| Standalone/ Networkable | Networkable |
| IP Rating | IP54 |
| Mount Type | Surface |
| Keypad Integrated | Yes |
| Read Range mm | 100 |
| LED / Beep | LED / Beep |
| Color | Gray / Charcoal |
| Wiegand Interface | Yes |
| Electrical Specifications |
Voltage: 13.6 V DC Power Consumption: 80 mA |
| Physical Specifications | Dimensions mm: 105 x 35 x 17 |
| Environmental Specifications | Operating Temp oC: -10 ~ +55 |
| Protection | Tamper Resistant |
| Additional info | The Gallagher Prox Readers are multimode readers supporting the widely available 125kHz proximity cards and keyfobs. This enables Gallagher Prox 125 kHz Readers to read both Cardax IV format, as well as a variety of Wiegand formats as provided by other reader manufacturers, such as Motorola, HID, Casi-Rusco and EM ASK. |
