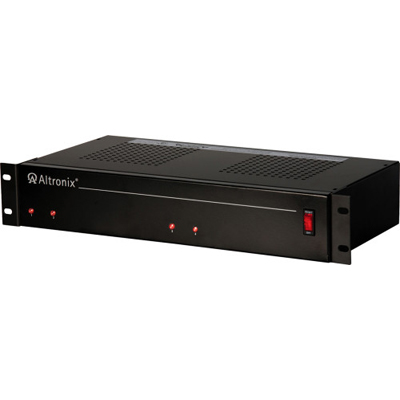

Altronix R1224DC16CB Power Supply, 16 PTC Class 2 Outputs, 12/24VDC @ 18A, 115VAC 2U

Technical Specification

Features:
  • Make: Altronix
  • Model code: R1224DC16CB
  • Input Voltage: 115 V AC
  • Output Voltage: 12 V DC
  • Power Supplies & Batteries: Yes
Additional info:

Illuminated power disconnect circuit breaker with manual reset. Removable terminal blocks w/locking screw flange. IEC 320 - 3-wire grounded line cord (detachable). 3U rack mount chassis for use in standard EIA 19" rack. Ease of installation saves time and eliminates costly labor.

Read more
Make Altronix
Manufacturer Altronix
Model code R1224DC16CB
Input Voltage 115 V AC
Output Voltage 12 V DC
Power Supplies & Batteries Yes
Environmental Specifications Operating Temperature C: 0 ~ 49 C (32 ~ 120 F )
Physical Specifications Dimension mm: 486 x 83 x 216
Weight g: 7120
Additional info
  • Illuminated power disconnect circuit breaker with manual reset.
  • Removable terminal blocks w/locking screw flange.
  • IEC 320 - 3-wire grounded line cord (detachable).
  • 3U rack mount chassis for use in standard EIA 19" rack.
  • Ease of installation saves time and eliminates costly labor.
