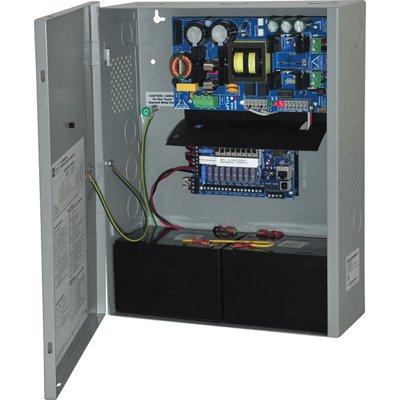

Altronix eFlow104NK8QP Networkable Dual Output Power Supply/Charger

Technical Specification

Features:
  • Make: Altronix
  • Model code: eFlow104NK8QP
  • Input Voltage: 120 V AC
  • Output Voltage: 24 V DC
  • No of Outputs: 8
Read more
Additional info:

Altronix eFlow104NK8QP converts a 120VAC 60Hz input into eight (8) fuse protected outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, and ancillary devices. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Networkable power distribution module facilitates monitoring, reporting, and control of the supervised DC power supply/charger over the network. It reports diagnostics via Email and Windows Dashboard Alert notifications, greatly reducing system downtime and eliminating unnecessary service calls.

Read more
Make Altronix
Manufacturer Altronix
Model code eFlow104NK8QP
Input Voltage 120 V AC
Output Voltage 24 V DC
No of Outputs 8
Power Supplies & Batteries Yes
Environmental Specifications Operating Temperature C: 0 ~ 49 C (32 ~ 120 F )
Operating Humidity %: 85
Physical Specifications Dimension mm: 305 x 394 x 114
Weight g: 4260
Additional info

Altronix eFlow104NK8QP converts a 120VAC 60Hz input into eight (8) fuse protected outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, and ancillary devices. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Networkable power distribution module facilitates monitoring, reporting, and control of the supervised DC power supply/charger over the network. It reports diagnostics via Email and Windows Dashboard Alert notifications, greatly reducing system downtime and eliminating unnecessary service calls.
