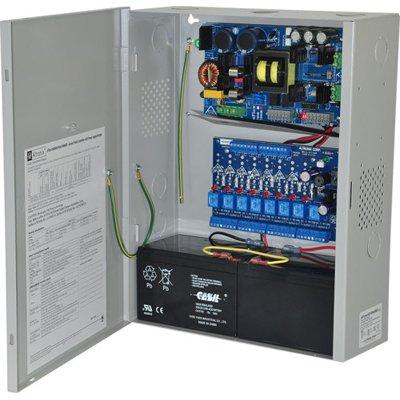

Altronix eFlow104NA8D Access Power Controller w/ Power Supply/Charger, 8 PTC Class 2 Relay Outputs, 24VDC @ 10A, Aux Output, FAI, 115VAC, BC400 Enclosure

Technical Specification

Features:

Make: Altronix
Model code: eFlow104NA8D
Input Voltage: 120 V AC
Output Voltage: 24 V DC
No of Outputs: 8

Additional info:

Altronix eFlow104NA8D unit distribut and switch power to access control systems and accessories. It converts a 120VAC 60Hz input into eight (8) independently controlled 24VDC PTC protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Altronix
Manufacturer	Altronix
Model code	eFlow104NA8D
Input Voltage	120 V AC
Output Voltage	24 V DC
No of Outputs	8
Power Supplies & Batteries	Yes
Environmental Specifications	Operating Temperature C: 0 ~ 49 C (32 ~ 120 F ) Operating Humidity %: 85
Physical Specifications	Dimension mm: 311 x 394 x 114 Weight g: 4040
Additional info	Altronix eFlow104NA8D unit distribut and switch power to access control systems and accessories. It converts a 120VAC 60Hz input into eight (8) independently controlled 24VDC PTC protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
