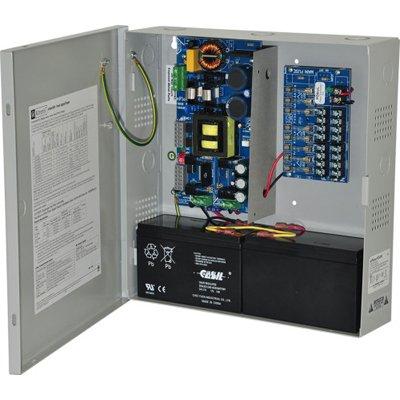

Altronix EFlow104N8V Power Supply Charger, 8 Fused Outputs, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC300 Enclosure

Technical Specification

Features:
  • Make: Altronix
  • Model code: eFlow104N8V
  • Input Voltage: 220 V AC
  • Output Voltage: 24 V DC
  • No of Outputs: 8
Read more
Additional info:

Altronix eFlow104N8V is a power supply/charger that converts a 220VAC 50/60Hz input into eight (8) fuse protected 24VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Read more
Make Altronix
Manufacturer Altronix
Model code eFlow104N8V
Input Voltage 220 V AC
Output Voltage 24 V DC
No of Outputs 8
Power Supplies & Batteries Yes
Environmental Specifications Operating Temperature C: 0 ~ 49 C (32 ~ 120 F )
Operating Humidity %: 85
Physical Specifications Dimension mm: 330 x 343 x 83
Weight g: 3150
Additional info

Altronix eFlow104N8V is a power supply/charger that converts a 220VAC 50/60Hz input into eight (8) fuse protected 24VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
