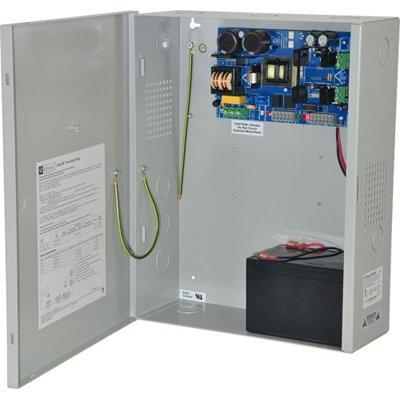

Altronix EFlow102NXV Power Supply Charger, Single Output, 12VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 220VAC, BC400 Enclosure
Technical Specification
- Make: Altronix
- Model code: eFlow102NXV
- Input Voltage: 220 V AC
- Output Voltage: 12 V DC
- Power Supplies & Batteries: Yes
Altronix eFlow102NXV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC output with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Read more
| Make | Altronix |
|---|---|
| Manufacturer | Altronix |
| Model code | eFlow102NXV |
| Input Voltage | 220 V AC |
| Output Voltage | 12 V DC |
| Power Supplies & Batteries | Yes |
| Environmental Specifications |
Operating Temperature C: 0 ~ 49 C (32 ~ 120 F ) Operating Humidity %: 85 |
| Physical Specifications |
Dimension mm: 311 x 394 x 114 Weight g: 3810 |
| Additional info |
Altronix eFlow102NXV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC output with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. |
| Download PDF version Download PDF version | |
