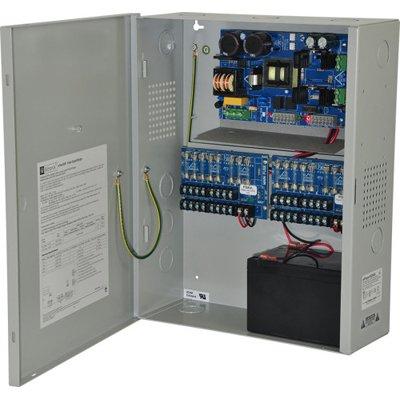

Altronix EFlow102NX16 Power Supply Charger

Technical Specification

Features:
  • Make: Altronix
  • Model code: eFlow102NX16
  • Input Voltage: 120 V AC
  • Output Voltage: 12 V DC
  • No of Outputs: 16
Read more
Additional info:

Altronix eFlow102NX16 is a power supply/charger that converts a 120VAC 60Hz input into sixteen (16) fuse protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Read more
Make Altronix
Manufacturer Altronix
Model code eFlow102NX16
Input Voltage 120 V AC
Output Voltage 12 V DC
No of Outputs 16
Power Supplies & Batteries Yes
Environmental Specifications Operating Temperature C: 0 ~ 49 C (32 ~ 120 F )
Operating Humidity %: 85
Physical Specifications Dimension mm: 311 x 394 x 114
Weight g: 3970
Additional info

Altronix eFlow102NX16 is a power supply/charger that converts a 120VAC 60Hz input into sixteen (16) fuse protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
