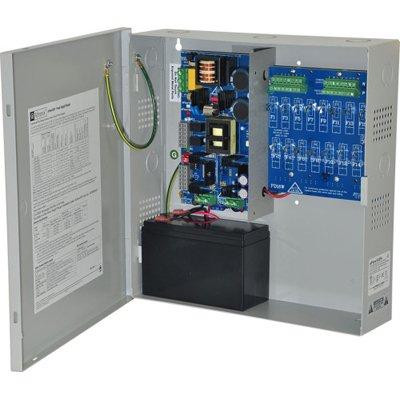

Altronix EFlow102N16DV Power Supply/charger
Technical Specification
- Make: Altronix
- Model code: eFlow102N16DV
- Input Voltage: 220 V AC
- Output Voltage: 12 V DC
- No of Outputs: 16
Altronix eFlow102N16DV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) PTC protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Read more| Make | Altronix |
|---|---|
| Manufacturer | Altronix |
| Category | Video Surveillance>Power supplies & batteries |
| Model code | eFlow102N16DV |
| Input Voltage | 220 V AC |
| Output Voltage | 12 V DC |
| No of Outputs | 16 |
| Power Supplies & Batteries | Yes |
| Environmental Specifications |
Operating Temperature C: 0 ~ 49 C (32 ~ 120 F ) Operating Humidity %: 85 |
| Physical Specifications |
Dimension mm: 330 x 343 x 83 Weight g: 3110 |
| Additional info |
Altronix eFlow102N16DV is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into sixteen (16) PTC protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. |
