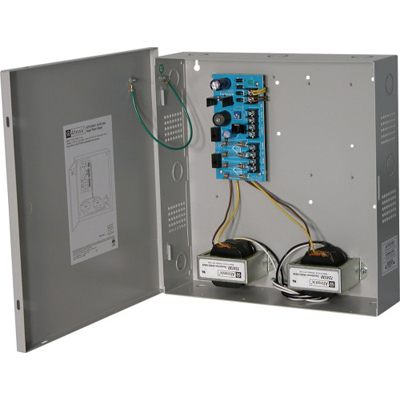

Altronix ALTV1224C4 AC/DC CCTV Power Supply

Technical Specification

Features:
  • Make: Altronix
  • Model code: ALTV1224C4
  • Input Voltage: 115 V AC
  • Output Voltage: 12 V DC and 24 V AC simultaneous
  • Power Supplies & Batteries: Yes
Additional info:

Altronix ALTV1224C4 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs is required. It provides two (2) 12VDC outputs with a total current of 2A and two (2) 24VAC outputs with a total current of 4A.

Read more
Make Altronix
Manufacturer Altronix
Model code ALTV1224C4
Input Voltage 115 V AC
Output Voltage 12 V DC and 24 V AC simultaneous
Power Supplies & Batteries Yes
Environmental Specifications Operating Temperature C: 0 ~ 49 C (32 ~ 120 F )
Operating Humidity %: 85
Physical Specifications Dimension mm: 343 x 330 x 83
Weight g: 6580
Additional info

Altronix ALTV1224C4 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs is required. It provides two (2) 12VDC outputs with a total current of 2A and two (2) 24VAC outputs with a total current of 4A.
