OT Systems Security camera systems

OT Systems ET4222PpH is an etnernet switch that support IGMP with a simple click of a dip switch. In large IP CCTV surveillance systems, IP cameras employ multicast transmission to reduce the needed bandwidth. However, an unmanaged Ethernet switch is poorly equipped to receive multicast packets; it converts them to broadcast packets. The system then sends broadcast packets to every port in the switch resulting in video loss or disconnection. OT Systems has eliminated that concern. By simply changing the dip switch, the ET4222PpH efficiently receives multicast packets and only forwards the data to the appropriate port. This innovative feature saves bandwidth and maximises the switch performance, increasing the systems effectiveness and reliability.

ET8200PpH-DR is an unmanaged Ethernet switch featuring 2M bits frame buffer memory, redundant power inputs and supports DIN-Rail and wall-mount installation.

ET8200H-DR is an unmanaged Ethernet switch featuring 2M bits frame buffer memory, redundant power inputs and supports DIN-Rail and wall-mount installation.

ET1222H-S-DR is a self-configured Ethernet switch featuring 1M bits frame buffer memory, 9K bytes jumbo frame and supports relay output for power failure and port failure alarm.

ET2212H-S-DR is a hardened self-configured Ethernet switch featuring 9K bytes jumbo frame, redundant power inputs and 1M bits frame buffer memory.

ET24222MPp-S is a 24-port 10/100/1000Base-TX Ethernet switch featuring 9K jumbo frames, 8K MAC forwarding addresses and PoE port configuration and scheduling.

ET8100CP-R8 is a receiver of 8-port coax to 8-port 10/100Base-TX Ethernet over Coax extender with PoC featuring constant data rate, dip switch for selecting distance 500m/300m and supports auto MDI/MDI-X function.

ET16100CP-R16 is a receiver of 16-port coax to 16-port 10/100Base-TX Ethernet over Coax extender with PoC featuring constant data rate, dip switch for selecting distance 500m/300m and supports auto MDI/MDI-X function.

L2+ Managed features provide easier manageability, robust security and QoS IGMP v1, v2, v3 Snooping IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet 19” 1U Rack-mount Web/CLI/SNMP (v1, v2c, v3) management interfaces Built-in AC and DC dual power supply Provide 4 10/100/1000Base-TX or 100/1000Base-FX dual speed SFP combo port Provide 20 100/1000Base-FX dual speed SFP slots Combo RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX Embedded Surveillance Device Management (Option by request)

OT Systems ET24122Pp-S is an unmanaged 24-port 10/100Base-TX (PoE+) and 2-port 10/100/1000Base-T/SFP combo ethernet switch. It supports external SFP. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto MDI/MDI-X, whereas, the combo RJ45 port supports 10/100/1000MbpsFull/Half-duplex, Auto-Negotiation, and Auto MDI/MDI-X.

OT Systems ET16122Pp-S is an unmanaged 16-port 10/100Base-TX (PoE+) and 2-port 10/100/1000Base-T/SFP combo ethernet switch. It supports IEEE802.3at PoE+ (30W per port) and external SFP. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto MDI/MDI-X, whereas, the combo RJ45 port supports 10/100/1000MbpsFull/Half-duplex, Auto-Negotiation, and Auto MDI/MDI-X.

OT Systems ET4111Pp-S-DR is an industrial unmanaged 4-port 10/100Base-TX (PoE+) and 1-port 100Base-FX SFP ethernet switch. It supports IEEE802.3at PoE+ (30W per port) and external 100Base SFP. It also supports Auto-Negotiation and Auto MDI/MDI-X. The ET4111Pp-S-DR features store-and-forward transmission as well as DIN -Rail & wall-mount installation.

OT Systems ET8122PpH-S-DR is a hardened unmanaged 8-port 10/100Base-TX (PoE+) and 2-port 10/100/1000Base-T/SFP combo ethernet switch. It supports IEEE802.3at PoE+ (30W per port) and external SFP. The RJ45 port supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto MDI/MDI-X, whereas, the combo RJ45 port supports 10/100/1000MbpsFull/Half-duplex, Auto-Negotiation, and Auto MDI/MDI-X. The ET8122PpH-S-DR features relay output for power and port failure as well as DIN -Rail & wall-mount installation.

Support IEEE 802.3at PoE+ (30W per port) Multicast / Broadcast / Flooding Storm Control Support 802.1p QoS, 4 queues per port 9K Jumbo Frames 1Mbit Packet Buffer Memory Fanless design Dual power input (12 ~ 58 VDC) IP30 DIN-Rail and Wall mounting options

The IET8242MPp Series is especially designed for high speed data communication of PoE devices in local and remote endconnections.The IET8242MPp Series is the fully managed switches offering eight 10/100/1000Mbps copper twisted-pair ports with high power PoEplus four 100/1000Mbps SFP ports.

1 10/100/1000Base-TX + 2 1000Base-FX SFP Automatically support IGMP (Multicasting) 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX Supports external 1000Base SFP Supports IEEE 802.3at PoE+ (30W) Supports Light Hardware IGMP V1, V2, V3 Supports 802.3x Flow control Supports Broadcast Storm Control 1M bits frame buffer memory 9K Bytes Jumbo Frame Supports Relay output for Power failure and port failure alarm Redundant Power Inputs Supports Wall-mount and DIN-Rail installation

Support IEEE 802.3at PoE+ (30W per port) Multicast / Broadcast / Flooding Storm Control Support 802.1p QoS, 4 queues per port 9K Jumbo Frames 1Mbit Packet Buffer Memory Fanless design Dual power input (12 ~ 58 VDC) IP30 DIN-Rail and Wall mounting options Hardened Series Wide Operating Temperature Range -40°C to 75°C (-40°F to 167°F)

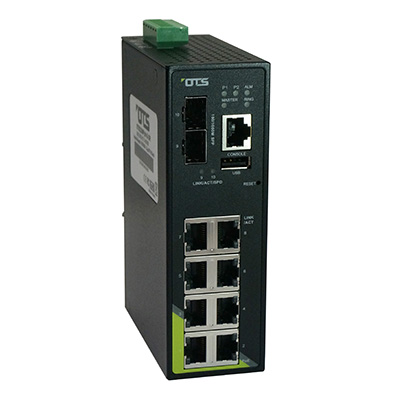

8 10/100/1000Base-TX(PoE+) + 2 100/1000Base-FX SFP Support IEEE802.3at PoE+(30W per port) RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX SFP Slot Supports 100/1000Mbps Supports IEEE802.1p Qos and Cos/Tos Supports IGMP v1/v2, up to 256 groups Web GUI, Serial Console, CLI Command configuration Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3 Network Redundancy support: G.8032 ERPS, RSTP, MSTP Redundant Power Inputs DIN-Rail and Wall-mount options

2 10/100/1000Base-TX + 1 1000Base-FX SFP Automatically support IGMP (Multicasting) 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX Supports 802.3x Flow control Supports external 1000Base SFP Supports IEEE 802.3at PoE+ (30W) Supports Light Hardware IGMP V1, V2, V3 Supports Broadcast Storm Control 1M bits frame buffer memory 9K Bytes Jumbo Frame Supports Relay output for Power failure and port failure alarm Redundant Power Inputs Supports Wall-mount and DIN-Rail installation

OT Systems SWFP5251-13-225S is a SFP module with 20km maximum distance.

OT Systems SIFP5251-13-225S is a 1G / Multimode / WDM 1-fiber / LC module with 550m maximum distance.

OT Systems SIFP3131-13-225S 100M / Multimode / WDM 1-fiber / LC

OT Systems SMFP3131-03-225F is a SFP module with 2km maximum distance.

OT Systems SMFP3151-13-225F is a 1G / Multimode / 2-fiber / LC SFP module

OT Systems SSFP3131-13-225F is a SFP module with 20km maximum distance.

OT Systems SWFP3151-13-225S is a SFP module with 20km maximum distance.

OT Systems SIFP5131-13-225S is a 100M / Multimode / WDM 1-fiber / LC SFP module

OT Systems SIFP3151-13-225S is a 1G / Multimode / WDM 1-fiber / LC SFP module 550m maximum distance.
