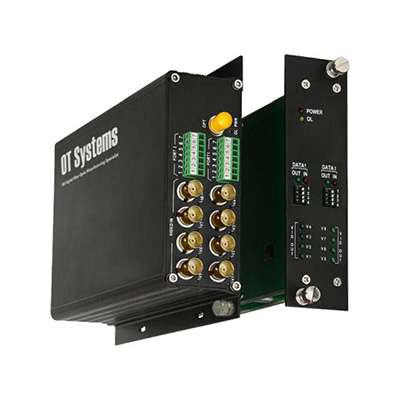

OT Systems FT820DB-SST 8-channel Video Transmitter/Receiver

Technical Specification

Features:
  • Make: OT Systems
  • Model code: FT820DB-SST
  • Data Transceiver: Yes
  • Transmitter Type: Yes
  • Receiver Type: Yes
Read more
Additional info:

OT Systems FT820DB-SST is a digital Video and Data transmission products, support fiber optical transmission of 10-Bit PCM coded video (up to 8 channels) with two bi-directional data and features high-performance laser-based optics for the clearest, most reliable data transmission in both single and multimode with no video degradation over the entire operating distance (up to 20 km).

Read more
Make OT Systems
Manufacturer OT-Morpho
Model code FT820DB-SST
Data Transceiver Yes
Transmitter Type Yes
Receiver Type Yes
No of Video Inputs 8
Physical Specifications Dimensions mm: 156 x 51 x 223
Weight g: 820
Environmental Specifications Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F)
Operating Humidity %: 0 ~ 95
Electrical Specifications Voltage: 12 V DC
Power Consumption: 6.6 W
Additional info OT Systems FT820DB-SST is a digital Video and Data transmission products, support fiber optical transmission of 10-Bit PCM coded video (up to 8 channels) with two bi-directional data and features high-performance laser-based optics for the clearest, most reliable data transmission in both single and multimode with no video degradation over the entire operating distance (up to 20 km).
