Larson Electronics, a Texas-based company with over 40 years of experience spearheading the industrial lighting sector, announced the release of an explosion proof portable surface mount infrared LED fixture operating on 120/240V AC 50/60Hz for vision systems, cameras, security systems, sensors and more. This light is designed for use in Class I, Divisions 1 and 2 hazardous locations and comes in either a spot or flood beam configuration. This unit offers 750 nm, 850 nm or 940 nm infrared wavelengths.
Infrared LED Fixture

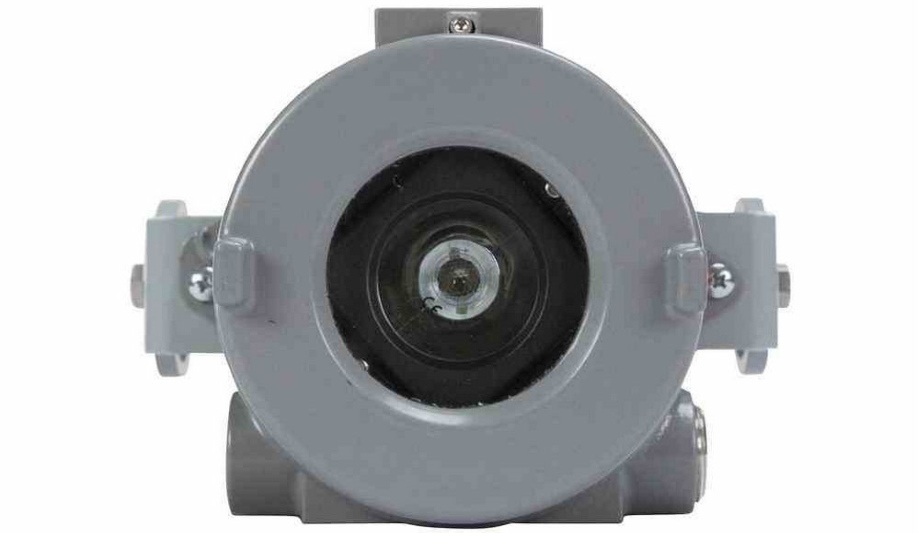

The EXHL-TRN-LE2-IR-1227 explosion proof infrared LED fixture is rated for use in Class I, Divisions 1 and 2, Groups B, C and D; Class I, Zones 1 and 2, Groups IIB+H2 and IIA; Class II, Divisions 1 and 2, Groups E, F and G; and Class III, Divisions 1 and 2 hazardous locations. The spot beam configuration on this unit offers a 10-degree beam measuring 225 feet long by 25 feet wide and a flood configuration that offers a 35-degree beam measuring 45 feet long by 40 feet wide. Operators can control the direction of the beam by tilting the unit towards the desired target. The housings are made of extruded aluminum and the lenses are made of unbreakable polycarbonate
Larson Electronics’ explosion proof infrared light is rated NEMA Type 3, 4, 4X, 7 (B, C, D) and 9 (E, F, G) and can operate in temperatures between -40˚C and 60˚C. This unit is waterproof up to three meters and can resist dust, dirt and humidity. The housings are made of extruded aluminum and the lenses are made of unbreakable polycarbonate. This unit features an adjustable surface mount bracket for easy control and two set screws.
Terminal Strips
The terminal strips inside of the fixture allow operators to make necessary electrical connections where wiring is fed through rigid pipe to the 3/4-inch NPT hubs on either side and tied to the fixture’s terminal strips to complete the electrical connection. Suitable applications include security systems, cameras, sensors, covert operations, vision systems and more.
