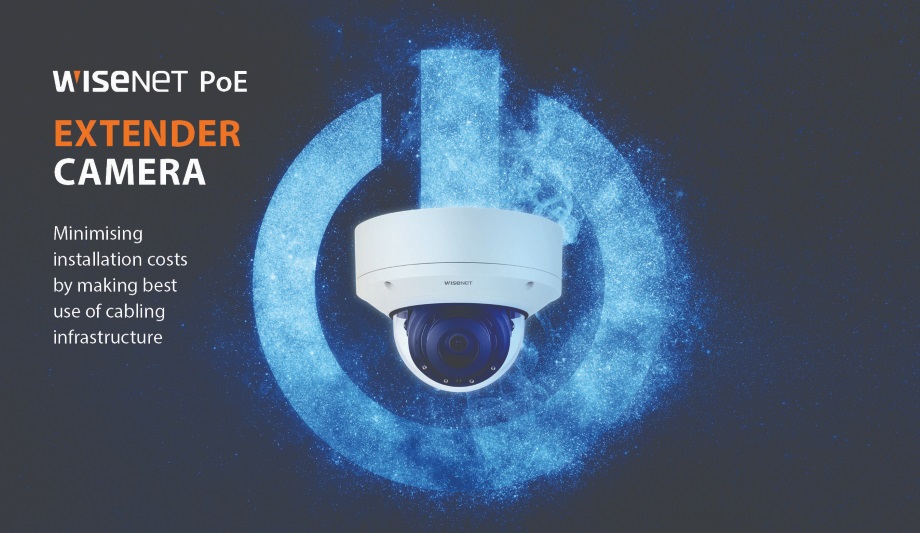

The new Wisenet PoE extender cameras from Hanwha Techwin are designed to save integrators and end users time and money, when there is a requirement to install two cameras within 80 meters of each other.
For retrofit applications where an additional camera is needed, system integrators need to simply substitute an existing Wisenet camera with a PoE Extender camera, and then re-install it at the new camera location, with both devices being able to share the same cable run.
PoE Extender cameras
With the ability to support all PoE cameras within the entire Wisenet range, the new 2 and 5 megapixel PoE Extender indoor and outdoor dome cameras provide an equally cost effective solution for new installations as they reduce the number of network ports and switches, as well as the amount of cabling, required.
Installation ease is matched by a considerably reduction in the cost of the time that system integrators would normally have to spend on site to install a new camera. System integrators also have the option to connect other PoE enabled devices to the Wisenet PoE extender cameras, such as a supplementary lighting unit, I/O controller or PIR sensor.
Built-in IR LEDs and Digital Image Stabilisation
The 4 new dome cameras all have built-in IR LEDs that illuminate objects up to 50 meters from the camera
The 4 new dome cameras all have built-in IR LEDs that illuminate objects up to 50 meters from the camera and feature Digital Image Stabilization (DIS) which helps ensure the capture of sharp, stable images by reducing motion blur which is caused by wind or vibration.
All are equipped with Wide Dynamic Range (WDR) technology, with the 2 megapixel models performing at up to 150dB and the 5 megapixel models at up to 120dB, to produce clear images from scenes containing a challenging mix of bright and dark areas, which normally results in overexposed or underexposed images.
Part of the Wisenet X Plus series, the PoE Extender cameras offer a number of other practical features that further minimizes the time installers have to spend on site, including magnets which lock sensor modules into the dome housing.
A waterproof gland, through which a network cable can be inserted with the aid of an RJ45 plastic push-through device, negates the need to re-make a cable end.
Prior to installation, technicians from the convenience of their workshop should be able to configure IP network settings without the need to remove a camera module from its packaging.
Advanced audio and video analytics
The new cameras come supplied with a diverse range of license-free specialist analytics such as directional detection, virtual line, enter/exit, appear/disappear and loitering detection.
In addition, an audio analysis function is able to recognize critical sounds, such as explosions, screams and broken glass, and then immediately generates an alert to enable emergency services to react quickly and effectively to any incident.
In a retail environment, for example, this functionality could be used to alert security personnel that a customer is behaving aggressively to a sales colleague.
Retail Insight business Intelligence solution
Processing power of the chipset at the heart of the new cameras enables them to support edge-based people counting
The processing power of the chipset at the heart of the new cameras enables them to support edge-based people counting, heat maps and que management applications.
The new cameras offer retailers, art galleries, museums and other business establishments which are open to the public, the opportunity to gain a greater understanding of customer behavior and improve productivity accordingly, with the option to display the captured data on the centralized dashboard of the Wisenet Retail Insight (v2.0) business intelligence solution.
Additional key features of the Wisenet PoE extender cameras include the following:
- PoE Out: Maximum 12.95W at 80 meters using CAT5/5E cable.
- Hallway View which provides a highly effective way to monitor narrow vertical areas such as shopping aisles and corridors, and extended tilt range of up to 90 degrees to ensure wide area coverage when the cameras are installed in locations which have low ceiling heights.
- WiseStream II, a complementary compression technology which dynamically controls encoding, balancing quality and compression, according to movement in the image. When WiseStream II is combined with H.265 compression, bandwidth efficiency is improved by up to 99% compared to current H.264 technology.
- Shock-detection technology which, via built-in gyro sensors, detects unusual physical shocks and generates alerts to enable operators to quickly respond to any incidents.
- Audio playback on event. Up to five pre-recorded warning messages can be stored on-board a PoE extender camera and these can be programmed to automatically play when pre-defined events occur.
The new Wisenet PoE extender cameras are as follows:
- Wisenet XNV-6081RE 2 megapixel outdoor dome with 2.8-12mm varifocal lens
- Wisenet XND-6081REV 2 megapixel indoor dome with 2.8-12mm varifocal lens
- Wisenet XNV-8081RE 5 megapixel outdoor dome with 3.6-9.4mm varifocal lens
- Wisenet XND-8081REV 5 megapixel indoor dome with 3.6-9.4mm varifocal lens
Cost-effective video integration solution
“At a time when many businesses will be striving to recover from the economic consequences of COVID-19 and might therefore have a reduced security budget, we are very pleased to be able to introduce a highly cost effective way to add a camera or another PoE enabled device to an existing system, or install a new two camera video surveillance solution,” said Uri Guterman, Head of Product & Marketing for Hanwha Techwin Europe.
He adds, “As well as their value proposition to end-users, these new cameras will undoubtably make life much easier for system integrators by minimizing the time they have to spend on site.”
