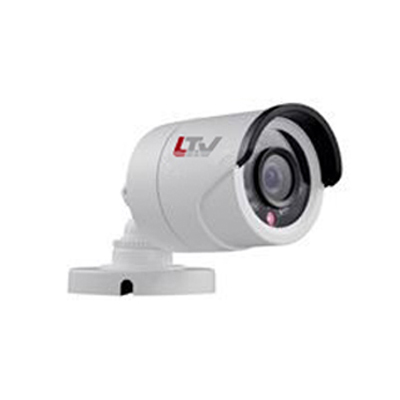

LTV Europe LTV-HCDM2-6200L-F3.6 Full HD Mini IR Bullet CCTV Camera

Technical Specification

Features:
  • Make: LTV Europe
  • Model code: LTV-HCDM2-T6200L-F3.6
  • Chip Inch Size ": 1/3
  • Color Type: True Day / Night
  • Resolution TVL: 2 MP
Read more
Additional info:

LTV Europe LTV-HCDM2-6200L-F3.6 is a full HD mini IR bullet CCTV camera. The camera features true day/night, privacy masking as well as OSD menu. It features up to 20m IR distance as well.

Read more
Make LTV Europe
Manufacturer LTV Europe Sicherheitstechnik GmbH
Model code LTV-HCDM2-T6200L-F3.6
Chip Inch Size " 1/3
Color Type True Day / Night
Resolution TVL 2 MP
HD Yes
Digital (DSP) Yes
Specialist Types Infrared
Electrical Specifications Voltage: 12 V DC
Power Consumption: 5 W
Motion Activated Yes
Focal Length mm 3.6
Picture Elements HxV 1920 x 1080
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/25 (1/30) s ~ 1/50,000 s
S/ N (Signal/ Noise) Ratio dB > 52
Synchronisation Internal
Signal Mode NTSC, PAL
Mini or Compact Mini
Zoom Yes
Video Output 1Vp-p Composite Output (75ohms/BNC)
Physical Specifications Dimension mm: 70 x 150
Weight g: 360
Environmental Specifications Operating Temperature oC: -10 ~ 60 C (14 ~ 140 F)
Protection: IP66
Operating Humidity %: 0 ~ 90
Additional info LTV Europe LTV-HCDM2-6200L-F3.6 is a full HD mini IR bullet CCTV camera. The camera features true day/night, privacy masking as well as OSD menu. It features up to 20m IR distance as well.
Download PDF version
