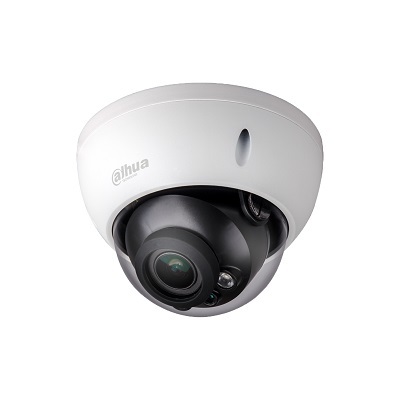

Dahua Technology HAC-HDBW2802R-Z 4K Starlight HDCVI IR Dome Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: HAC-HDBW2802R-Z
- Series: PRO Series
- Chip Inch Size: 1/2
- Color Type: Color / Monochrome
Additional info:
Starlight, 120dB True WDR, 3DNR Max. 4K resolution HD/SD switchable Audio in interface 3.7-11mm motorized lens Max. IR length 30m, Smart IR IP67, IK10, DC12V±30%
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>Dome cameras |
| Model code | HAC-HDBW2802R-Z |
| Chip Inch Size | 1/2 |
| Color Type | Color / Monochrome |
| Resolution TVL | 8MP |
| HD | Yes |
| Sensitivity lux | 0 ~ 0.005 |
| Digital (DSP) | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Electrical Specifications |
Voltage: 12 V DC Power Consumption: 7 W |
| Focal length | 3.7 ~ 11mm |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter range | 1/4 ~ 1/100,000s |
| S/ N (Signal/ Noise) Ratio dB | 65 |
| Signal Mode | PAL, NTSC |
| Built-in IR LED | Yes |
| Video Output | 1-channel BNC high definition video output / CVBS video output |
| Network Properties | Image Frame Rate: 15 ~ 30 fps |
| Physical Specifications |
Dimensions mm: 122 x 89 Weight g: 470 |
| Environmental Specifications |
Operating Temp oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 90 Protection: IP67, IK10 |
| Additional info |
|
