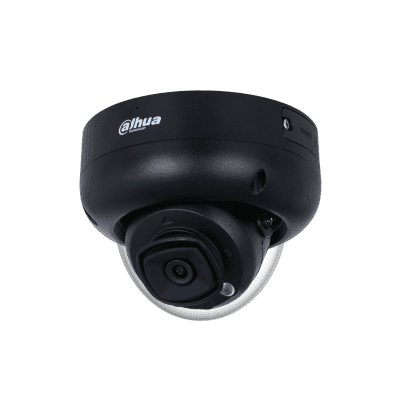

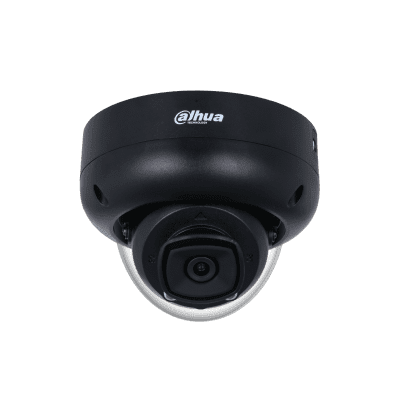

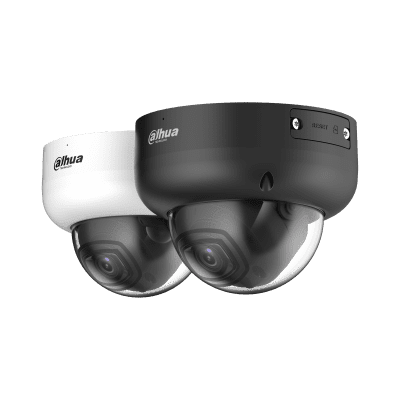

Dahua AI-Powered 8MP Dome WizMind Network Camera
Technical Specification
- Make: Dahua Technology
- Model code: DH-IPC-HDBW5842R-ASE
- Series: WizMind S Series
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
Built-in IR LED, and the max. illumination distance is 50 m. ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
Read moreMake | Dahua Technology |
---|---|
Manufacturer | Dahua Technology USA Inc. |
Category | Video Surveillance>IP Dome cameras |
Model code | DH-IPC-HDBW5842R-ASE |
Series | WizMind S Series |
Chip Inch Size | 1/1.8 |
Color Type | Color / Monochrome |
Resolution TVL | 8MP |
Megapixel | Yes |
Sensitivity lux | 0.0008 lux@F1.6 (Color, 30 IRE) ; 0.0004 lux@F1.6 (B/W, 30 IRE) ; 0 lux (Illuminator on) |
Indoor/Outdoor | Outdoor |
Electrical Specifications |
Voltage: 12 V DC / PoE / ePoE Power Consumption: Max: 6.8 W (12 VDC); 8.8 W (PoE) |
Focal length | 2.8 mm; 3.6 mm; 6 mm |
Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Back Light Compensation | Yes |
White Balance | Yes |
Electronic Shutter range | Auto/Manual 1/3 s–1/100,000 s |
S/ N (Signal/ Noise) Ratio dB | >56 |
Built-in IR LED | Yes |
Network Properties |
Interface: RJ-45 (10/100 Enhancement Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P Image Frame Rate: 25/30fps |
Physical Specifications |
Dimensions mm: 94.0 x Φ122 Weight g: 712.9 |
Environmental Specifications |
Operating Temp oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤95 Protection: IP67, IK10 |
System Requirements | Web Browser: IE: IE 9 and later ; Chrome: Chrome 102 and later ; Firefox: Firefox 88 and later |
Additional info |
|
Download PDF version Download PDF version |
