Hanwha Techwin America

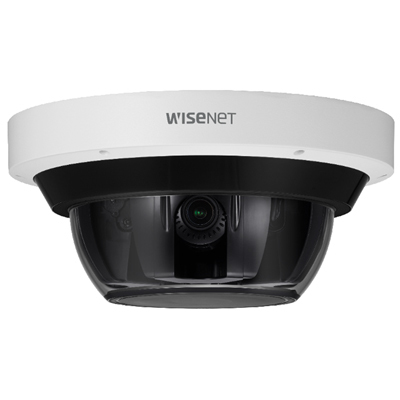

Hanwha PNM-9085RQZ Multi-Sensor Camera

Product Profile

Hanwha’s PNM-9085RQZ multi-directional camera features motorized varifocal lenses for precise control of focal length, angle of view and zoom for each direction. Each sensor supports remote PTRZ (pan, tilt, rotate, zoom) control for efficient installation and easy adjustment. The 20MP (5MP x 4) PNM-9085RQZ features built-in IR illumination for each sensor. The PNM-9085RQZ allows users to quickly change the camera to 180/270/360 degree configuration as well as custom presets, merging an element of multi-imagers and PTZ presets.

Read more

Technical Specification

Make Hanwha Techwin
Manufacturer Hanwha Techwin America
Model code PNM-9085RQZ
Series WISENET P SERIES
Chip Inch Size 1/2
Color Type Color / Monochrome
Resolution TVL 20MP
Megapixel Yes
Sensitivity lux 0 ~ 0.11
Dome Type PTZ
Indoor/Outdoor Outdoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, HPoE
Power Consumption: 45W
Focal length 4.13 ~ 9.4mm
Compression H.265/H.264: Main/Baseline/High, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2 ~ 1/12,000sec
Zoom Ratio x2.3
Network Properties Interface: RJ-45(10/100/1000BASE-T)
Network Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Image Frame Rate: 30 fps
Physical Specifications Dimensions mm: ∮315 x 146
Weight g: 5200
Environmental Specifications Operating Temp oC: -40 ~ +55 C (-40 ~ +131 F)
Operating Humidity %: < 90
Protection: IP66, IK10, NEMA4X
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.13
Web Browser: Google Chrome, MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only)
Additional info
  • 5MP x 4ch multi-directional camera, using one IP address
  • Motorized PTRZ for easy installation and remote adjustment of entire FoV
  • 30fps@5MP(H.265, H.264)
  • 4.13~9.4mm(2.3x) motorized PTRZ varifocal lens
  • Integrated IR that rotates with camera head, viewable length : 30m
  • H.265, H.264, MJPEG codec, Multi streaming
  • Video analytics, WiseStreamⅡ
  • IP66, IK10, NEMA4X
  • Easy Gangbox mounting installation
