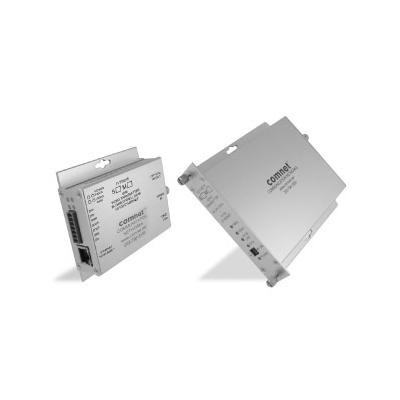

ComNet FVT10D1EMM Mini Video Transmitter/data Transceiver

Technical Specification

Features:
  • Make: ComNet
  • Model code: FVT10D1EMM
  • Data Transceiver: Yes
  • Transmitter Type: Yes
  • No of Fibres: 1
Read more
Additional info:

ComNet FVT10D1EMM mini video transmitter/data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digital video with one bi-directional data channel plus one 10/100 Mbps fast Ethernet port. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols.

Read more
Make ComNet
Manufacturer ComNet Europe Ltd.
Model code FVT10D1EMM
Data Transceiver Yes
Transmitter Type Yes
No of Fibres 1
No of Video Inputs 1
Bandwidth MHz 10
Physical Specifications Dimensions mm: 104 x 94 x 28
Weight g: 900
Environmental Specifications Operating Temperature oC: -40 ~ +75 C (-40 ~ +167 F)
Operating Humidity %: 0 ~ 95
Electrical Specifications Power Consumption: 350 mA
Voltage: 8 ~ 15 V DC
Additional info ComNet FVT10D1EMM mini video transmitter/data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digital video with one bi-directional data channel plus one 10/100 Mbps fast Ethernet port. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols.
