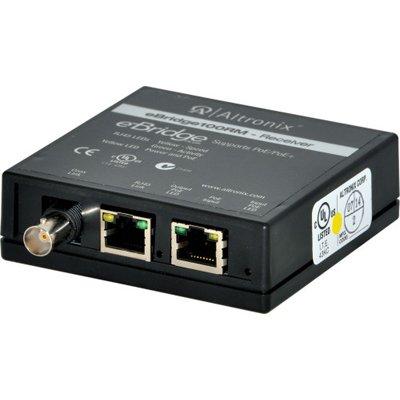

Altronix EBridge100RM EoC Or Long Range Ethernet Single Port Receiver

Technical Specification

Features:
  • Make: Altronix
  • Model code: eBridge100RM
  • Receiver Type: Yes
  • No of Video Inputs: 1
  • Dimensions mm: 89 x 111 x 24
Additional info:

eBridge100RM is a versatile dual solution Ethernet receiver/media converter which transmits data at 100Mbps full duplex and power over Coax cable or extended CAT5e cable in a PoE+ compliant format. The eBridge100RM is powered via a PoE midspan such as the Altronix NetWay series or by an endspan. The receiver passes the PoE(+) compliant power over cable to the eBridge100TM/eBridge100ST transceiver which in turn passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over existing coax or structured cable.

Read more
Make Altronix
Manufacturer Altronix
Model code eBridge100RM
Receiver Type Yes
No of Video Inputs 1
Physical Specifications Dimensions mm: 89 x 111 x 24
Weight g: 110
Environmental Specifications Operating Temperature oC: -20 ~ +49 C (-4 ~ +120 F)
Operating Humidity %: 85
Electrical Specifications Voltage: PoE
Additional info

eBridge100RM is a versatile dual solution Ethernet receiver/media converter which transmits data at 100Mbps full duplex and power over Coax cable or extended CAT5e cable in a PoE+ compliant format. The eBridge100RM is powered via a PoE midspan such as the Altronix NetWay series or by an endspan. The receiver passes the PoE(+) compliant power over cable to the eBridge100TM/eBridge100ST transceiver which in turn passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over existing coax or structured cable.
